A-1PA-113-150B2

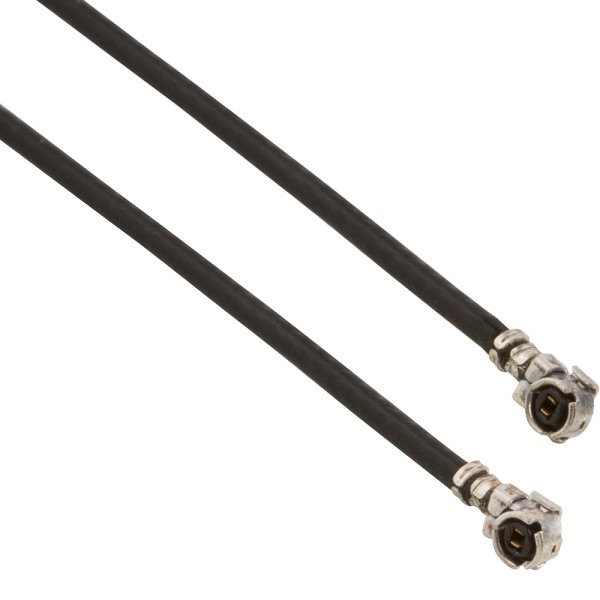

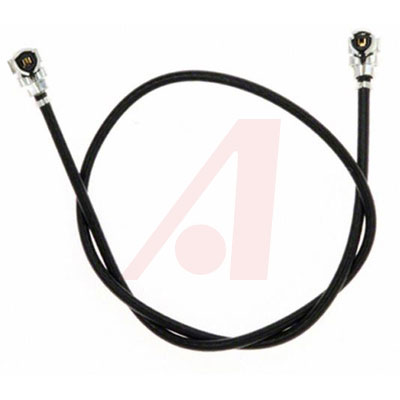

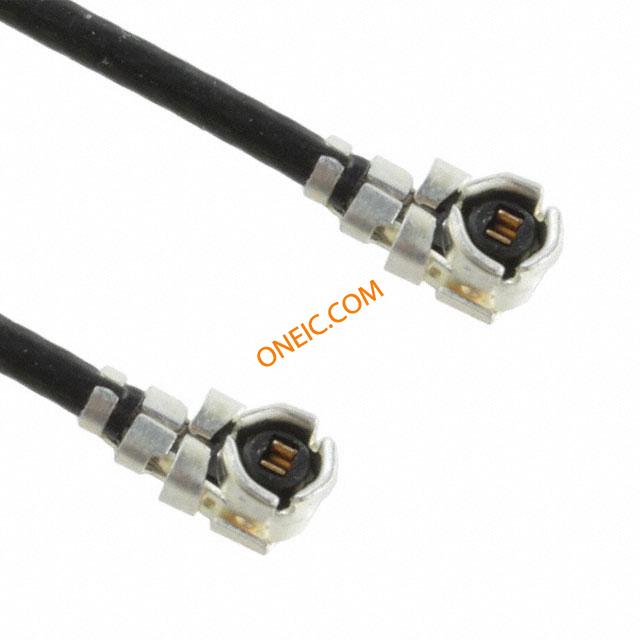

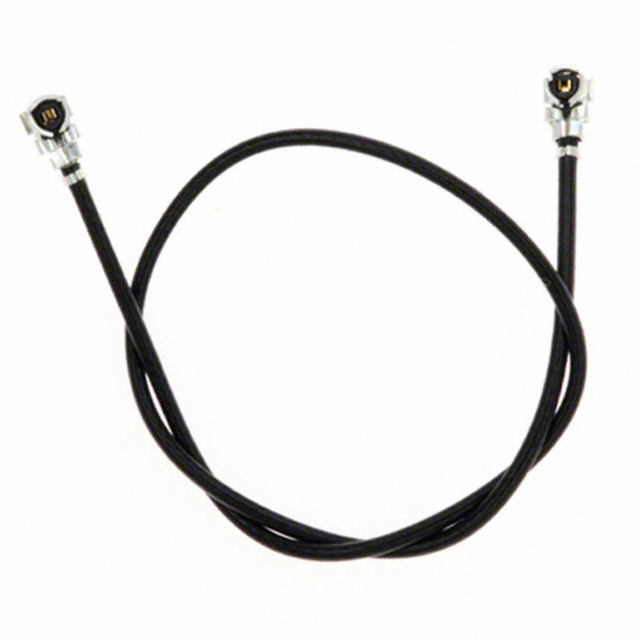

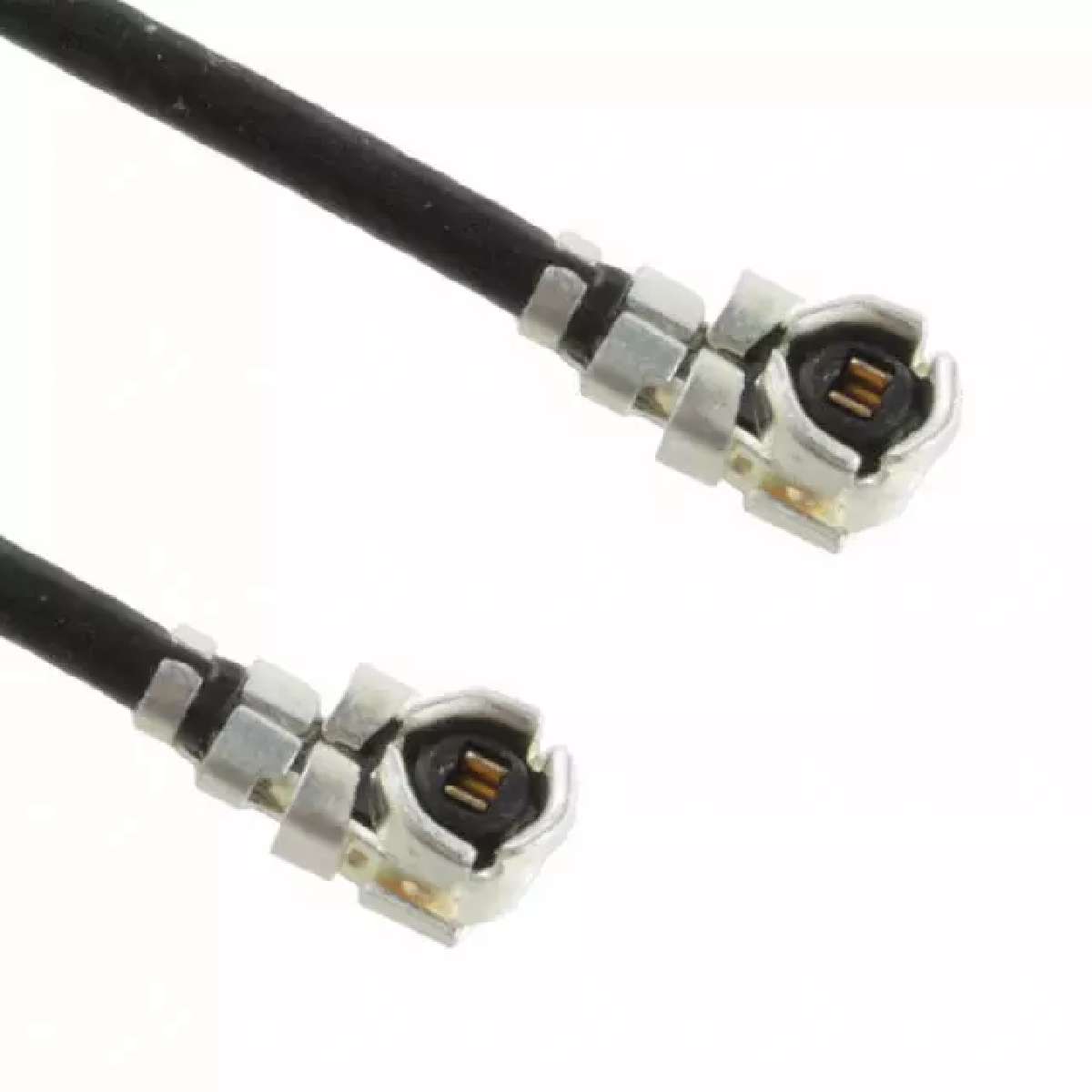

AMPHENOL RF  A-1PA-113-150B2  直角跳线

manufactures a family of Amphenol Micro Coaxial AMC connectors for us in applications with 50 Ohm impedance requirements. AMC connectors are low profile 2.5mm off the board and offer an extremely small board footprint 3×3mm. This series is 100% compatible with the U.FL interface.

**Specifications:**

* Impedance: 50 Ohms

* Frequency Range: 0-6 GHz

* VSWR: 1.3 Max. DC to 3 GHz; 1.4 Max. 3-6 GHz

* Insulation Resistance: 500 Megohms Min.

* Mating: Female Contact Holding Force 0.15 N Min. Measured with a 0.475 Dia. Pin Gauge

* Temperature Range: –40°C to 90°C
