AT62-201-1631

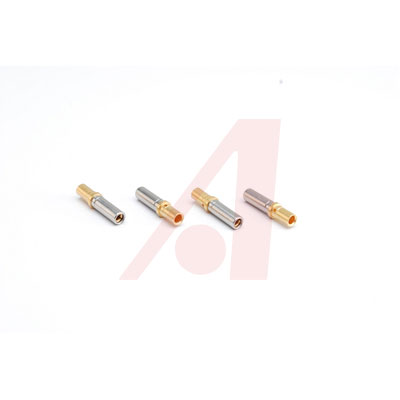

AMPHENOL SINE SYSTEMS  AT62-201-1631  CIRCULAR CONTACT, SKT, 20-16AWG, CRIMP 新

AT Series™ connectors are a high-performance, cost-effective solution able to be used in a variety of interconnect applications: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural. They contain superior environmental seals and seal retention capabilities.

The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties and environmentally RoHS compliant. The sealing system is comprised of a front and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.

AT Series™ connectors are compatible with other existing standard products industry-wide.

* Product Type: Contact

* Contact Size: 16

* AWG: 16-20

* Contact Type: Socket

* Plating: Gold

* Wire Range AWG: 16-20

* AMP: 13
