ADT75BRMZ-REEL

\+ -1ΣC准确， 12位数字温度传感器 +-1∑C Accurate, 12-Bit Digital Temperature Sensor

Product Details

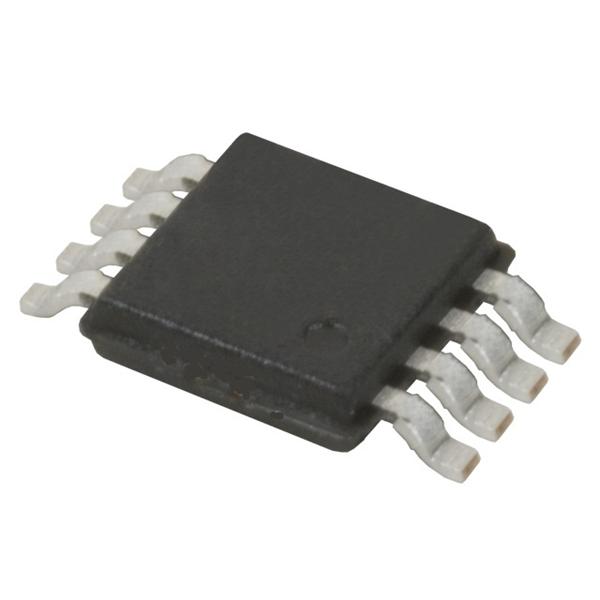

The ADT75 is a complete temperature monitoring system in 8-lead MSOP and SOIC packages. It contains a band gap temperature sensor and 12-bit Aanalog-to-digital converter ADC to monitor and digitize the temperature to a resolution of 0.0625°C. The ADT75 is pin and register compatible with the LM75 and AD7416.

The ADT75 is specified for operation at supply voltages from 2.7 V to 5.5 V. Operating at 3.3 V, the average supply current is typically 200 μA.

The ADT75 offers a shutdown mode that powers down the device and this mode gives a shutdown current of typically 3 μA. The ADT75 is rated for operation over the –55°C to +125°C temperature range.

The A0, A1, and A2 pins are available for address selection. The OS/ALERT pin is an open-drain output that becomes active when temperature exceeds a programmable limit. The OS/ALERT pin can operate in either comparator or interrupt mode.

**Product Highlights

**

1. On-chip temperature sensor allows an accurate measurement of the ambient temperature. The measurable temperature range is −55°C to +125°C.

2. Supply voltage is 2.7 V to 5.5 V.

3. Space-saving, 8-lead MSOP and 8-lead SOIC.

4. Temperature accuracy is ±1°C maximum.

5. Temperature resolution is 0.0625°C.

6. Shutdown mode reduces the current consumption to 3 μA typical.

7. Connect up to eight ADT75s to a single SMBus/I2C bus.

**

**

**Applications**

.

Isolated Sensors

.

Environmental Control Systems

.

Computer Thermal Monitoring

.

Thermal Protection

.

Industrial Process Control

.

Power-system Monitors

.

Hand Held Applications

### Features and Benefits

.

12-bit Temperature-to-digital Converter

.

B-Grade Accuracy ±1.0°C from 0°C to 70°C

.

A-Grade Accuracy ±2.0°C from –25°C to 100°C

.

SMBus-/I2C- Compatible Interface

.

Operation from −55°C to +125°C

.

Operation from 2.7 V to 5.5 V

.

Overtemperature Indicator

.

Shutdown Mode for Low Power Consumption

.

Power Consumption 79 μW Typically at 3.3 V

.

Small, Low Cost 8-pin MSOP in Pb-Sn and Pb-free Packages

.

Standard 8-pin SOIC Pb-free Package
