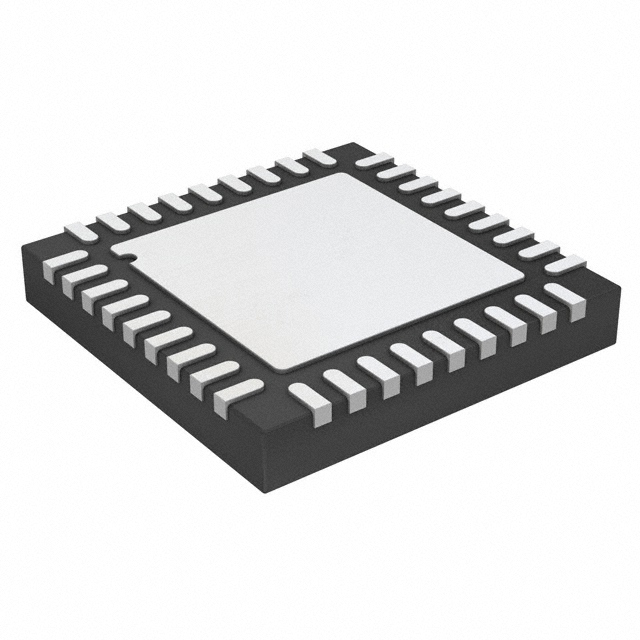

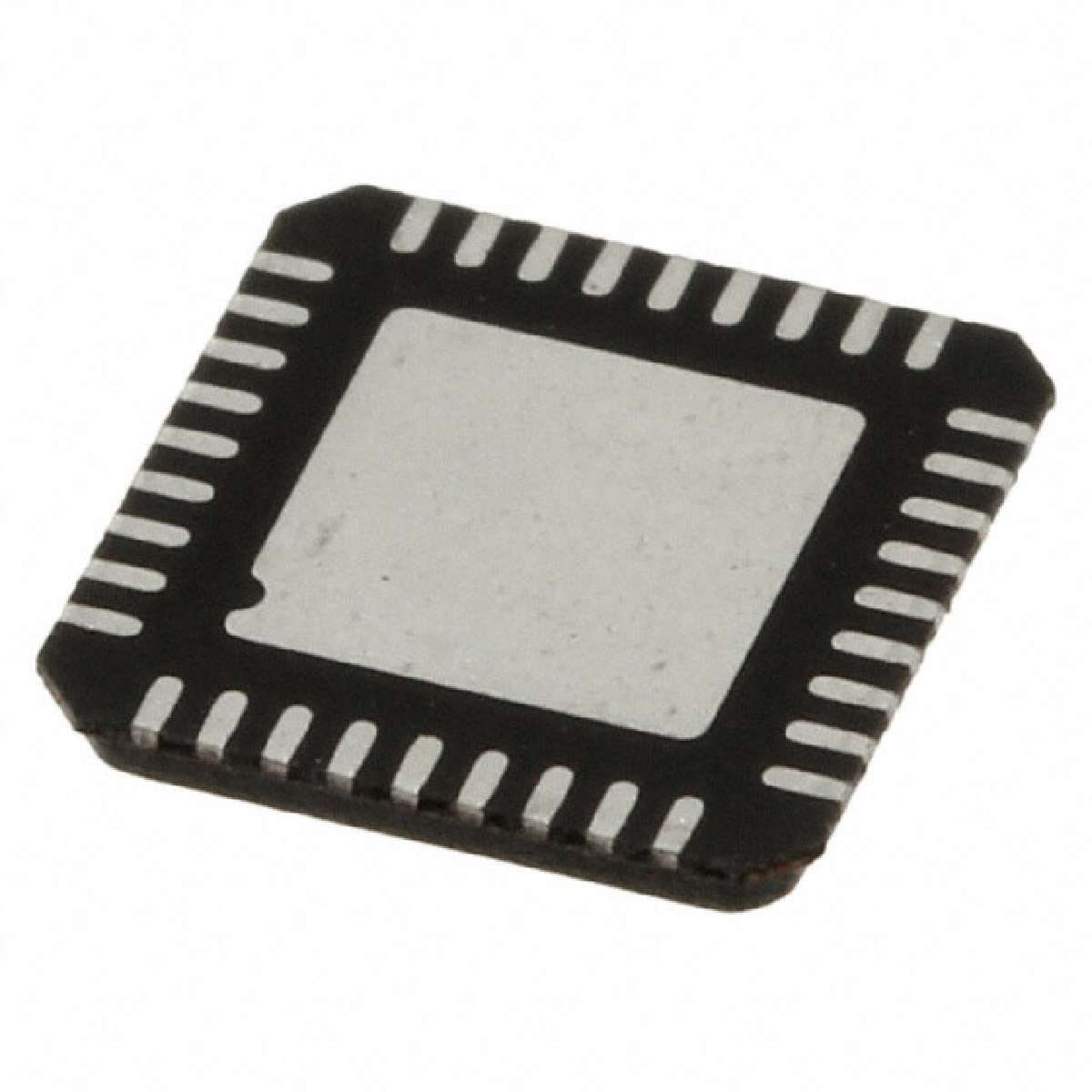

ADL5356ACPZ-R7概述

1200 MHz至2500 MHz的双平衡混频器, LO缓冲器, IF放大器和RF巴伦 1200 MHz to 2500 MHz, Dual-Balanced Mixer, LO Buffer, IF Amplifier, and RF Balun

Product Details

The ADL5356 uses a highly linear, doubly balanced, passive mixer core along with integrated RF and local oscillator LO balancing circuitry to allow single-ended operation. The ADL5356 incorporates the RF baluns, allowing for optimal performance over a 1200 MHz to 2500 MHz RF input frequency range. Performance is optimized for RF frequencies from 1700 MHz to 2500 MHz using a low-side LO and RF frequencies from 1200 MHz to 1700 MHz using a high-side LO. The balanced passive mixer arrangement provides good LO-to-RF leakage, typically better than −35 dBm, and excellent intermodulation performance. The balanced mixer core also provides extremely high input linearity, allowing the device to be used in demanding cellular applications where in-band blocking signals may otherwise result in the degradation of dynamic performance. A high linearity IF buffer amplifier follows the passive mixer core to yield a typical power conversion gain of 8.2 dB and can be used with a wide range of output impedances.

The ADL5356 provides two switched LO paths that can be used in TDD applications where it is desirable to ping-pong between two local oscillators. LO current can be externally set using a resistor to minimize dc current commensurate with the desired level of performance. For low voltage applications, the ADL5356 is capable of operation at voltages down to 3.3 V with substantially reduced current. Under low voltage operation, an additional logic pin is provided to power down <300 μA the circuit when desired.

The ADL5356 is fabricated using a BiCMOS high performance IC process. The device is available in a 6 mm × 6 mm, 36-lead LFCSP and operates over a −40°C to +85°C temperature range. An evaluation board is also available.

**Applications**

* Cellular base station receivers

* Transmit observation receivers

* Radio link downconverters

### Features and Benefits

.
RF frequency range of 1200 MHz to 2500 MHz
.
IF frequency range of 30 MHz to 450 MHz
.
Power conversion gain: 8.2 dB
.
SSB noise figure of 9.9 dB
.
SSB noise figure with 5 dBm blocker of 21 dB
.
Input IP3 of 31 dBm
.
Input P1dB of 11 dBm
.
Typical LO drive of 0 dBm
.
Single-ended, 50 Ω RF and LO input ports
.
High isolation SPDT LO input switch
.
Single-supply operation: 3.3 V to 5 V
.
Exposed paddle, 6 mm × 6 mm, 36-lead LFCSP
ADL5356ACPZ-R7中文资料参数规格
技术参数

频率 1.2GHz ~ 2.5GHz

供电电流 350 mA

耗散功率 2200 mW

增益 8.2 dB

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 2200 mW

电源电压 4.75V ~ 5.25V

封装参数

引脚数 36

封装 LFCSP-36

外形尺寸

高度 0.83 mm

封装 LFCSP-36

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

ADL5356ACPZ-R7引脚图与封装图
ADL5356ACPZ-R7引脚图

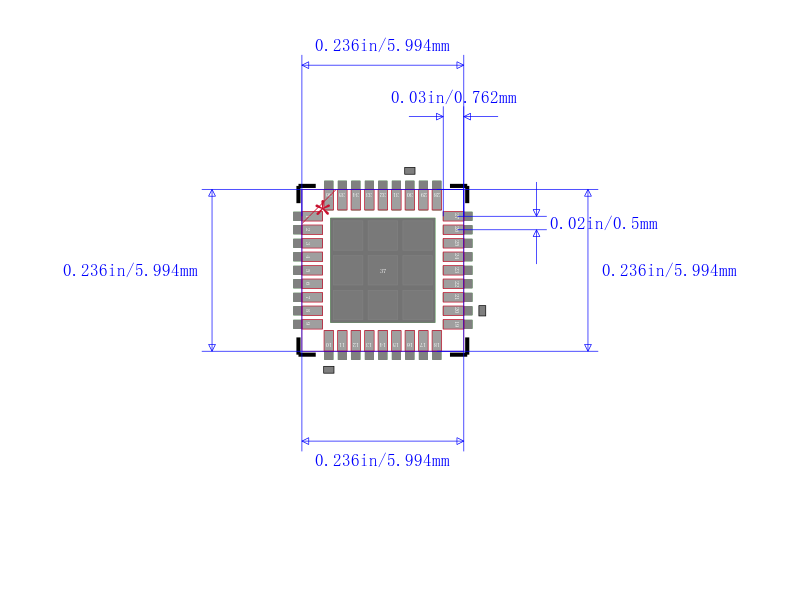

ADL5356ACPZ-R7封装图
ADL5356ACPZ-R7电路图
ADL5356ACPZ-R7封装焊盘图
