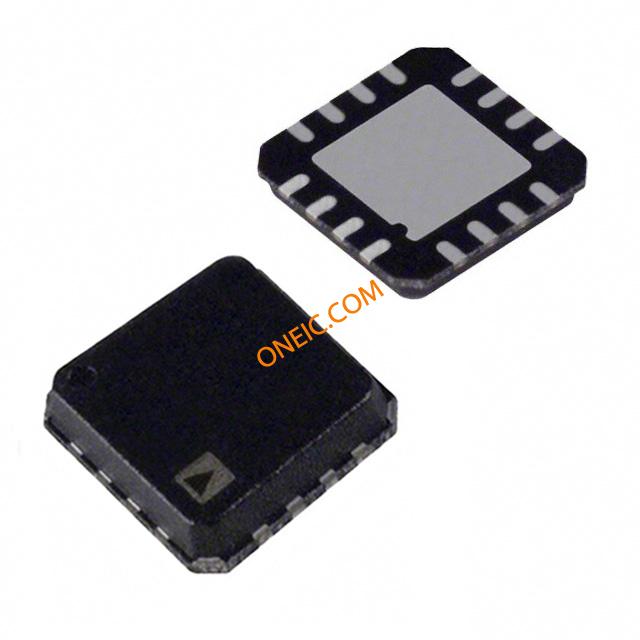

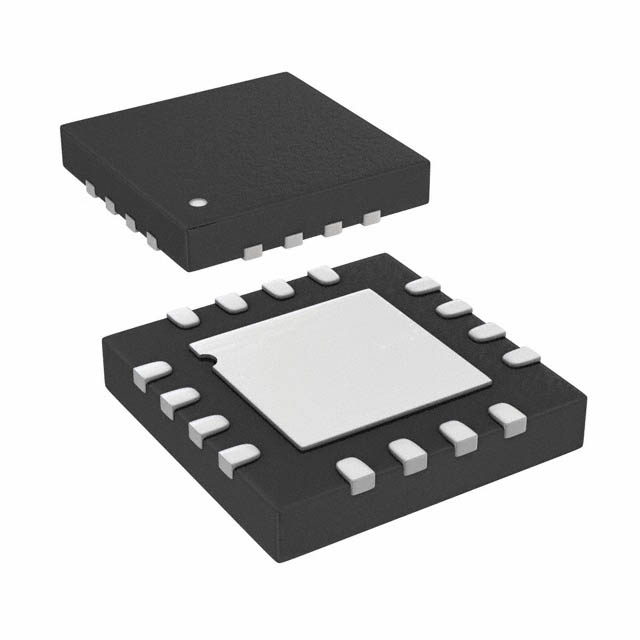

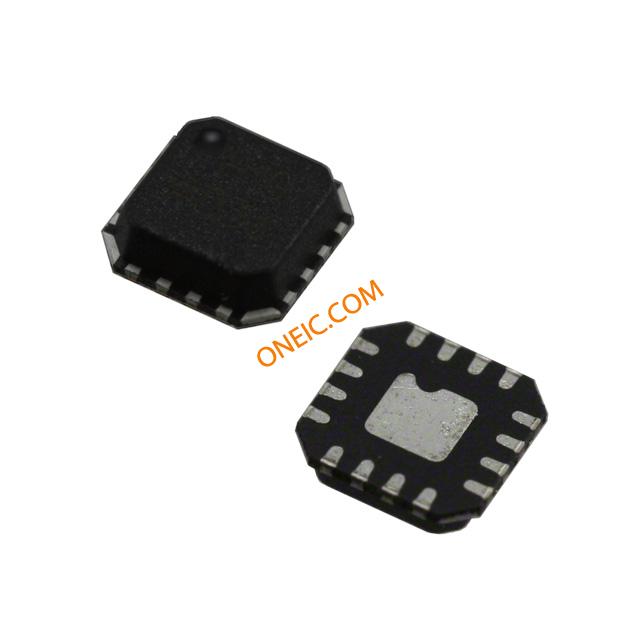

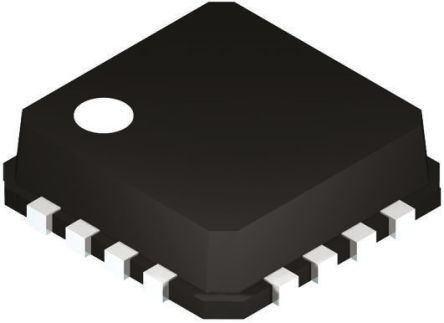

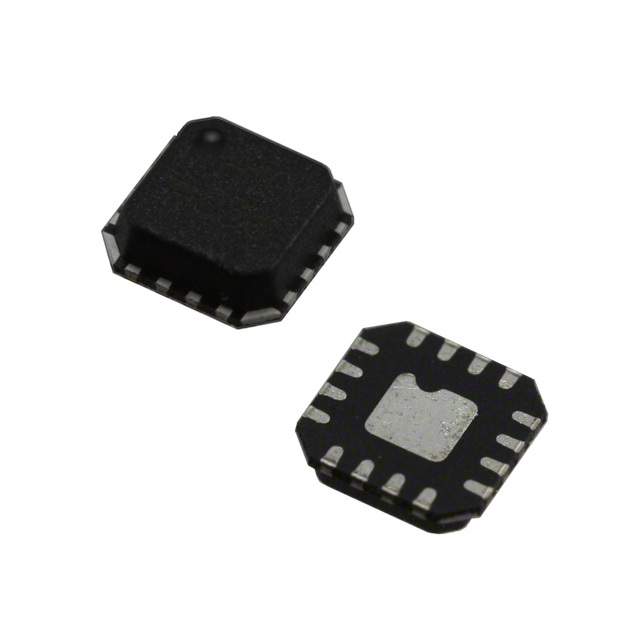

ANALOG DEVICES ADM8843ACPZ-REEL7 发光二极管驱动器, 1输出, 电荷泵, 2.6V-5.5V输入, 1.5MHz开关, 20mA输出, LFCSP-16
LED 驱动器，Analog Devices
得捷:
IC LED DRV RGLTR PWM 16LFCSP
立创商城:
ADM8843ACPZ-REEL7
欧时:
Analog Devices LED 驱动器集成电路 ADM8843ACPZ-REEL7, 2.6 → 5.5 V 直流输入, 最大为 4.81 V输出
e络盟:
发光二极管驱动器, 1输出, 电荷泵, 2.6V-5.5V输入, 1.5MHz开关, 20mA输出, LFCSP-16
艾睿:
Four White LED Backlight Driver for LCD Drivers
安富利:
LED DRVR 4Segment 3.3V/5V 16-Pin LFCSP EP T/R
Chip1Stop:
LED DRVR 4Segment 3.3V/5V 16-Pin LFCSP EP T/R
Verical:
Four White LED Backlight Driver for LCD Drivers
Newark:
# ANALOG DEVICES ADM8843ACPZ-REEL7 LED Driver, Charge Pump, 2.6V to 5.5V input, 1 Output, 1.5 MHz switch-freq., 20 mA out, LFCSP-16
罗切斯特:
LED DRVR 4Segment 3.3V/5V 16-Pin LFCSP EP T/R
DeviceMart:
IC LED DRVR WHITE BCKLGT 16LFCSP
Win Source:
LED Driver IC 4 Output DC DC Regulator Switched Capacitor Charge Pump PWM Dimming 20mA 16-LFCSP-VQ 3x3
频率 1.5 MHz
电源电压DC 5.50V max
输出接口数 4
输入电压DC 2.60V ~ 5.50V
输出电压 4.81 V
输出电流 20 mA
供电电流 5000 mA
针脚数 16
耗散功率 2 mW
开关频率 1.5 MHz
输入电压Max 5.5 V
输入电压Min 2.6 V
输出电压Max 4.81 V
输出功率Max 2 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2 mW
电源电压 2.6V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.6 V
输入电压 2.6VDC ~ 5.5VDC
安装方式 Surface Mount
引脚数 16
封装 LFCSP-16
宽度 3 mm
高度 0.83 mm
封装 LFCSP-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Building Technology, Building Control and Automation, 背光，照相机闪光灯
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
