ANALOG DEVICES AD7476SRTZ-R2 模数转换器, 12 bit, 1 MSPS, 单, 2.7 V, 5.25 V, SOT-23
模数转换器 12 位,单通道,1MSPS,Analog Devices
### 模拟至数字转换器 - Analog Devices
模拟至数字转换器转换模拟电气信号,用于数据处理用途。 Analog Devices 提供行业最大系列 A/D 转换器产品,设计工程师依赖这些产品在接地和空间恶劣环境中提供可靠性能。
欧时:

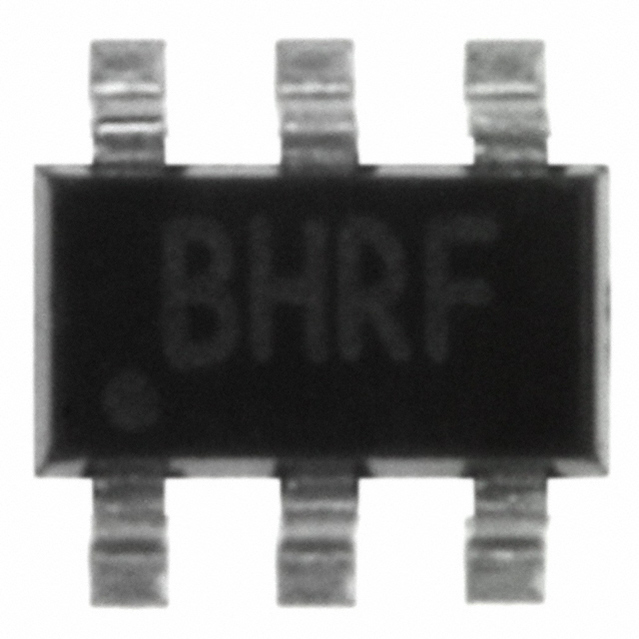

Analog Devices AD7476SRTZ-R2 12 位 ADC, 6引脚 SOT-23封装
e络盟:
模数转换器, 12 bit, 1 MSPS, 单端, SPI, 单, 2.7 V
艾睿:
Analog Devices offers this AD7476SRTZ-R2 ADC that will easily convert your continuous analog signals into digital data without altering essential content. This device&s;s digital interface is serial spi, qspi, microwire. It has a single-ended input signal. This device is based on SAR architecture. Its maximum power dissipation is 15 mW. This ADC has a resolution of 12bit. This ADC has an input voltage of 5.25 V. This ADC has a minimum operating temperature of -55 °C and a maximum of 125 °C.
Chip1Stop:
Single Channel Single ADC SAR 600ksps 12-bit Serial 6-Pin SOT-23 T/R
Verical:
Single Channel Single ADC SAR 600ksps 12-bit Serial 6-Pin SOT-23 T/R
罗切斯特:
ADC, Successive Approximation, 12-Bit, 1 Channel, Serial Access, CMOS, PDSO6
Win Source:
IC ADC 12BIT SAR SOT23-6 / 12 Bit Analog to Digital Converter 1 Input 1 SAR SOT-23-6
数字逻辑电平 SAR
电源电压DC 2.70V min
供电电流 2.00 mA
电路数 1
通道数 1
针脚数 6
位数 12
耗散功率 15 W
采样率 1 Msps
分辨率Bits 12.0
输入电容 30 pF
模数转换数ADC 1
输入数 1
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 15 mW
输入通道数 1
电源电压Max 5.25 V
电源电压Min 2.7 V
输入电压 5.25 V
安装方式 Surface Mount
引脚数 6
封装 SOT-23-6
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-6
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Unmanned Systems, Aerospace and Defense, Avionics
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2017/07/07
ECCN代码 3A001A2C
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7476SRTZ-R2 ADI 亚德诺 | 当前型号 | 当前型号 |
AD7476ARTZ-500RL7 亚德诺 | 类似代替 | AD7476SRTZ-R2和AD7476ARTZ-500RL7的区别 |
AD7476SRTZ-500RL7 亚德诺 | 类似代替 | AD7476SRTZ-R2和AD7476SRTZ-500RL7的区别 |
AD7476BRTZ-R2 亚德诺 | 类似代替 | AD7476SRTZ-R2和AD7476BRTZ-R2的区别 |
