四, 15 V , 256位,数字电位器,具有引脚可选的SPI / I2C Quad, 15 V, 256-Position, Digital Potentiometer with Pin-Selectable SPI/I2C
Product Details
The AD5263 is the industry’s first quad-channel, 256-position, digital potentiometer1 with a selectable digital interface. This device performs the same electronic adjustment function as mechanical potentiometers or variable resistors, with enhanced resolution, solid-state reliability, and superior low temperature coefficient performance.
Each channel of the AD5263 offers a completely programmable value of resistance between the A terminal and the wiper or between the B terminal and the wiper. The fixed A-to-B terminal resistance of 20 kΩ, 50 kΩ, or 200 kΩ has a nominal temperature coefficient of ±30 ppm/°C and a ±1% channel-to-channel matching tolerance. Another key feature of this part is the ability to operate from +4.5 V to +15 V, or at ±5 V.
Wiper position programming presets to midscale upon power-on. Once powered, the VR wiper position is programmed by either the 3-wire SPI or 2-wire I2C-compatible interface. In the I2C mode, additional programmable logic outputs enable users to drive digital loads, logic gates, and analog switches in their systems.

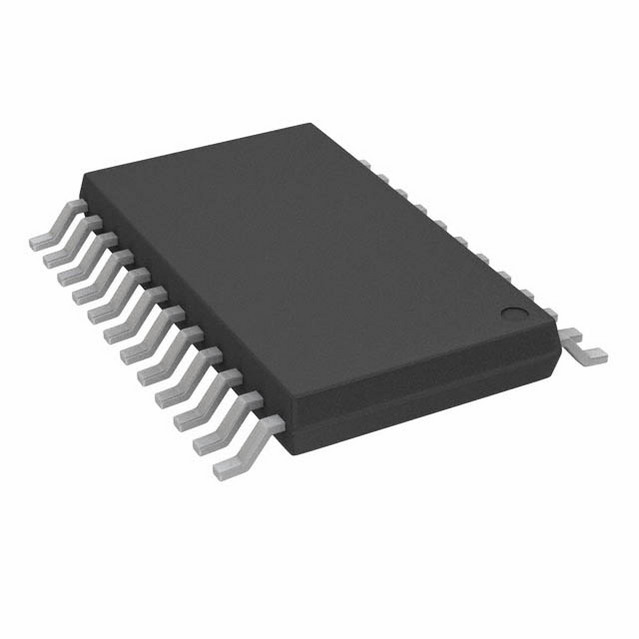

The AD5263 is available in a narrow body, 24-lead TSSOP. All parts are guaranteed to operate over the automotive temperature range of –40°C to +125°C.
For single- or dual-channel applications, refer to the AD5260/AD5280 or AD5262/AD5282 data sheets.
**Applications**
* Mechanical potentiometer replacement
* Optical network adjustment
* Instrumentation: gain, offset adjustment
* Stereo channel audio level control
* Automotive electronics adjustment
* Programmable power supply
* Programmable filters, delays, time constants
* Line impedance matching
* Low resolution DAC/trimmer replacement
* Base station power amp biasing
* Sensor calibration
1 The terms digital potentiometer, VR, and RDAC are used interchangeably.
### Features and Benefits
容差 ±30 %
供电电流 0.001 mA
电路数 4
针脚数 256
时钟频率 25.0MHz max
电阻 20 kΩ
阻值偏差 ±30 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 16.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 24
封装 TSSOP-24
长度 7.8 mm
宽度 4.4 mm
高度 1.05 mm
封装 TSSOP-24
工作温度 -40℃ ~ 125℃
温度系数 ±30 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5263BRUZ20-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5263BRU20 亚德诺 | 完全替代 | AD5263BRUZ20-REEL7和AD5263BRU20的区别 |
AD5263BRUZ20 亚德诺 | 类似代替 | AD5263BRUZ20-REEL7和AD5263BRUZ20的区别 |
AD5263BRU20-REEL7 亚德诺 | 功能相似 | AD5263BRUZ20-REEL7和AD5263BRU20-REEL7的区别 |
