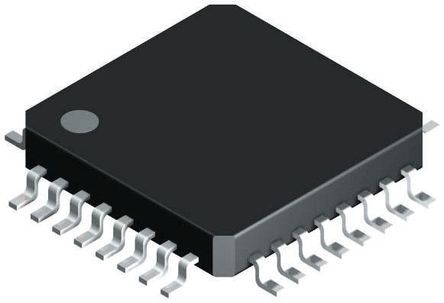

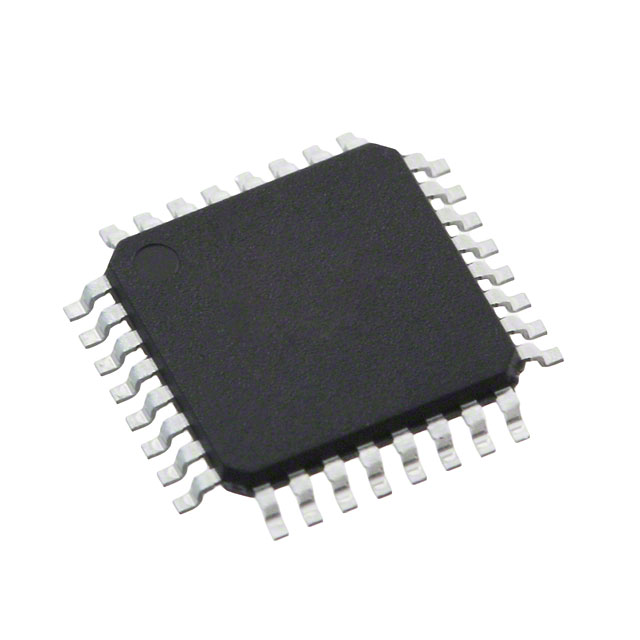

ATMEGA48V-10AU

8 位 megaAVR® 微控制器，4KB 至 16KB 闪存，Atmel我们在 RS Components 提供 Atmel 的各种 megaAVR 8 位微控制器。每个微控制器均基于增强型 RISC 体系结构，并具有 QTouch 库支持。 所有 megaAVR 微控制器具有不同 Kb 的系统内可编程内存、EEPROM 和 SRAM 以及不同引脚和封装类型。 **megaAVR 8 位微控制器类型 ** •ATmega8 •ATmega16 •ATmega48 •ATmega88 •ATmega162 •ATmega164 •ATmega165 •ATmega168 •ATmega8515 •ATmega8535### AVR 微控制器，Atmel

The is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 4kB ISP flash memory, 512byte SRAM, 256byte EEPROM, an 8-channel/10-bit A/D converter TQFP and QFN/MLF and debugWIRE for on-chip debugging. The device supports a throughput of 20MIPS at 20MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using the Atmel high density non-volatile memory technology. The on-chip ISP flash allows the program memory to be reprogrammed in-system through an SPI serial interface, by a conventional non-volatile memory programmer, or by an on-chip boot program running on the AVR core. The boot program can use any interface to download the application program in the application flash memory.

.

Advanced RISC architecture

.

Power-on reset and programmable brown-out detection

.

Internal calibrated RC oscillator

.

External and internal interrupt sources

.

Five sleep modes - Idle, ADC noise reduction, power-save, power-down and standby

.

131 Powerful instructions-most single clock cycle execution

.

32 x 8 General purpose working registers

.

Fully static operation

.

Up to 20MIPS throughput at 20MHz

.

On-chip 2-cycle multiplier

.

QTouch® library support

.

Programmable watchdog timer with separate on-chip oscillator

.

On-chip analog comparator

.

Interrupt and wake-up on pin change

.

Two 8-bit timers/counters with separate prescalers and compare modes

.

One 16-bit timer/counter with separate prescaler, compare mode and capture mode

.

Real-time counter with separate oscillator

.

Six PWM channels

.

Programmable serial USART

.

Master/Slave SPI serial interface
