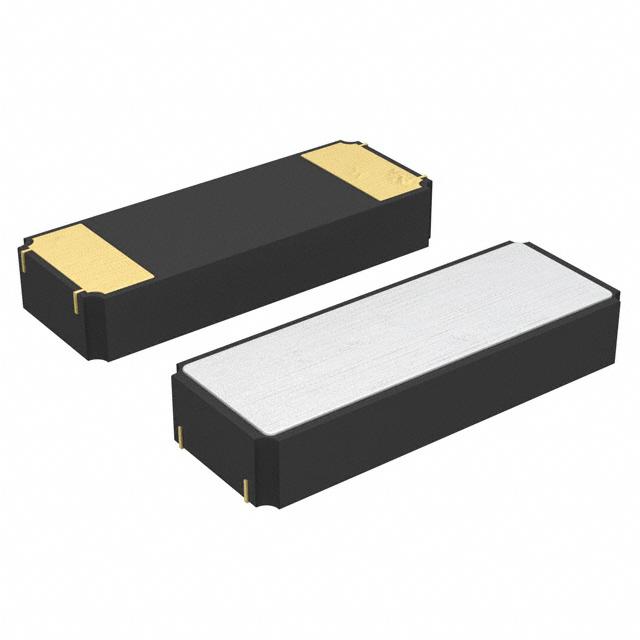

ABRACON ABS10-32.768KHZ-1-T 晶振, 32.768KHZ, 12.5PF, 4.9 X 1.8MM
±10ppm 晶体 12.5pF 2-SMD，无引线
得捷:
CRYSTAL 32.7680KHZ 12.5PF SMD
立创商城:
32.768kHz ±10ppm 12.5pF
贸泽:
Crystals 32.768KHz 12.5pF -40C +85C 10ppm
e络盟:
晶体, 32.768 kHz, 表面安装, 4.9mm x 1.8mm, 12.5 pF, 10 ppm, ABS10 Series
艾睿:
Crystal 0.032768MHz ±10ppm Tol 12.5pF Flexural 70000Ohm 2-Pin CSMD T/R
安富利:
Crystal 0.032768MHz 12.5pF 2-Pin CSMD T/R
Chip1Stop:
Crystal 0.032768MHz ?10ppm Tol 12.5pF 70000Ohm 2-Pin CSMD T/R
Verical:
Crystal 0.032768MHz ±10ppm Tol 12.5pF Flexural 70000Ohm 2-Pin CSMD T/R
Newark:
# ABRACON ABS10-32.768KHZ-1-T CRYSTAL, 32.768KHZ, 12.5PF, 4.9 X 1.8MM
频率 32.768 kHz
频率容差 ±10 ppm
等效串联电阻ESR 70 kΩ
负载电容 12.5 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 4.9 mm
宽度 1.8 mm
高度 1 mm
封装 SMD-2
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 测试与测量, 通信与网络, Clock & Timing, Communications & Networking, Test & Measurement, Commercial, , Test & Measurement, Clock & Timing, 商业, 时钟与计时
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
