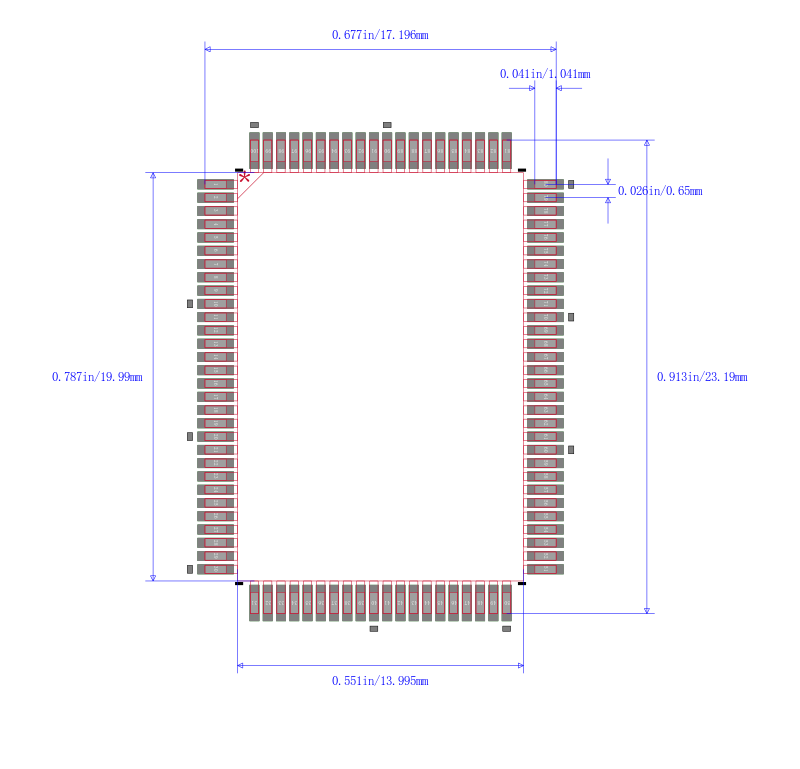

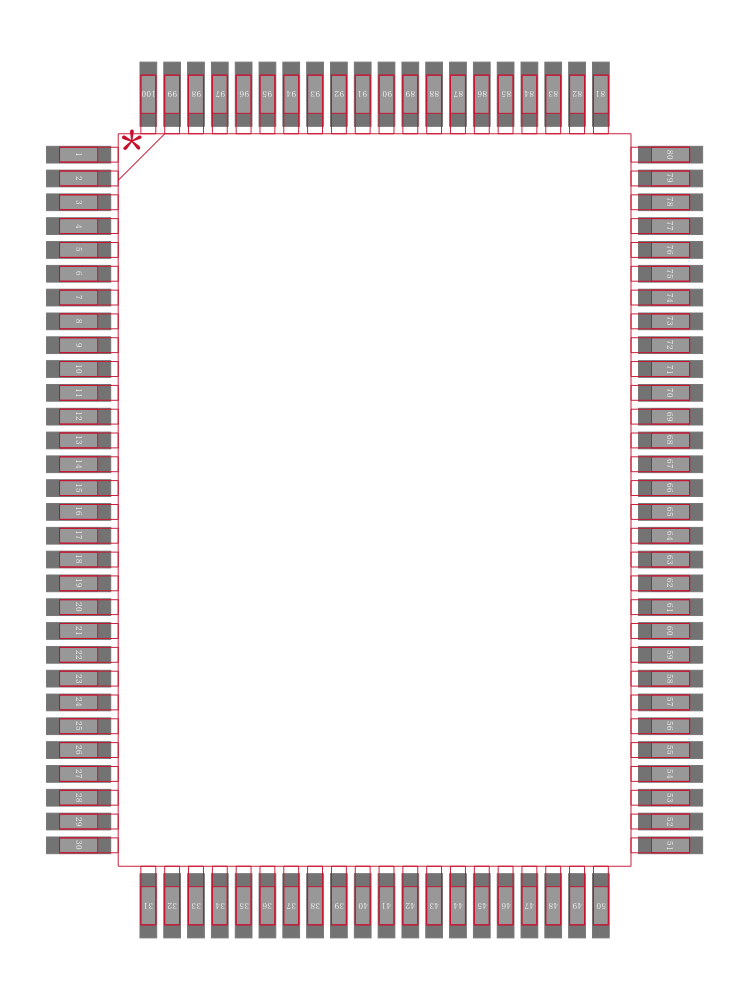

AD9879BS

混合信号前端机顶盒，电缆调制解调器 Mixed-Signal Front End Set-Top Box, Cable Modem

GENERAL DESCRIPTION

The AD9879 is a single-supply set-top box and cable modem mixed-signal front end. The device contains a transmit path interpolation filter, complete quadrature digital upconverter, and transmit DAC. The receive path contains a 12-bit ADC, a 10-bit ADC, and dual 7-bit ADCs. All internally required clocks and an output system clock are generated by the phase-locked loop PLL from a single crystal or clock input.

The transmit path interpolation filter provides an upsampling factor of 16× with an output signal bandwidth as high as 8.3 MHz. Carrier frequencies up to 65 MHz with 26 bits of frequency tuning resolution can be generated by the direct digital synthesizer DDS. The transmit DAC resolution is 12 bits and can run at sampling rates as high as 232 MSPS. Analog output scaling from 0.0 dB to 7.5 dB in 0.5 dB steps is available to preserve SNR when reduced output levels are required.

FEATURES

Low cost 3.3 V MxFE™ for DOCSIS-, EURO-DOCSIS-, DVB-, DAVIC-compliant set-top box and cable modem applications

232 MHz quadrature digital upconverter

   12-bit direct IF DAC TxDAC+™

   Up to 65 MHz carrier frequency DDS

   Programmable sampling clock rates

   16× upsampling interpolation LPF

   Single-tone frequency synthesis

   Analog Tx output level adjust

   Direct cable amp interface

12-bit, 33 MSPS direct IF ADC with optional video clamping input

10-bit, 33 MSPS direct IF ADC

Dual 7-bit, 16.5 MSPS sampling I/Q ADC

12-bit Σ-∆ auxiliary DAC

APPLICATIONS

  Cable modem and satellite systems

  Set-top boxes

  Power line modem

  PC multimedia

  Digital communications

  Data and video modems

  QAM, OFDM, FSK modulation
