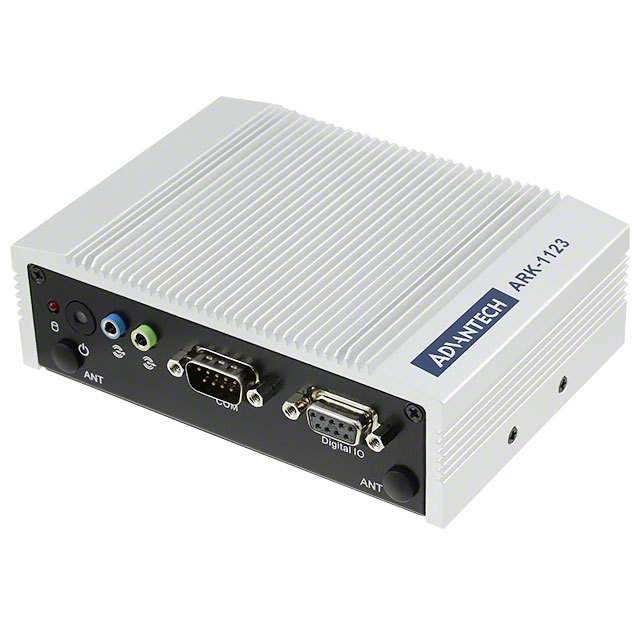

ARK-1123L-S3A1E

工作温度Max 70 ℃

工作温度Min -30 ℃

Series -

Operating-Temperature -30°C ~ 70°C

Size-Dimension 5.27" x 3.71" 133.8mm x 94.2mm

Power-Watts -

Speed 1.33GHz

Core-Processor Atom E3825

Ethernet 10/100/1000 Mbps

USB USB 2.0 1, USB 3.0 1

Number-of-Cores 2

Cooling-Type Heat Sink

Form-Factor -

Expansion-Site-Bus Mini-PCIe

RAM-Capacity-Installed 8GB/0GB

Storage-Interface SATA HDD, mSATA

Video-Outputs VGA

RS-232-422-485 2

Digital-I-O-Lines 8

Watchdog-Timer Yes

RoHS标准 RoHS Compliant

数据手册
