ATF-33143-TR2G

Trans JFET N-CH 5.5V 305mA 4Pin3+Tab SOT-343 T/R

Description

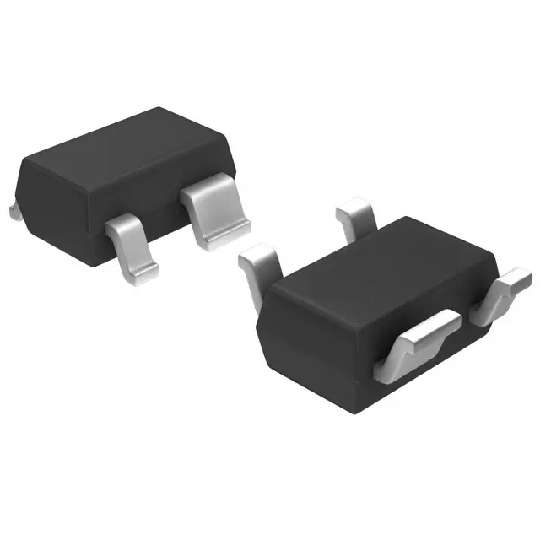

Avago’s ATF-33143 is a high dynamic range, low noise PHEMT housed in a 4-lead SC-70 SOT-343 surface mount plastic package.

Based on its featured performance, ATF-33143 is ideal for the first or second stage of base station LNA due to the excellent combination of low noise figure and enhanced linearity[1]. The device is also suitable for applications in Wireless LAN, WLL/RLL, MMDS, and other systems requiring super low noise figure with good intercept in the 450 MHz to 10 GHz frequency range.

Features

• Lead-free Option Available

• Low Noise Figure

• Excellent Uniformity in Product Specifications

• 1600 micron Gate Width

• Low Cost Surface Mount Small Plastic Package SOT-343 4 lead SC-70

• Tape-and-Reel Packaging Option Available

Applications

• Tower Mounted Amplifier, Low Noise Amplifier and Driver Amplifier for GSM/TDMA/CDMA Base Stations

• LNA for Wireless LAN, WLL/RLL and MMDS Applications

• General Purpose Discrete PHEMT for other Ultra Low Noise Applications
