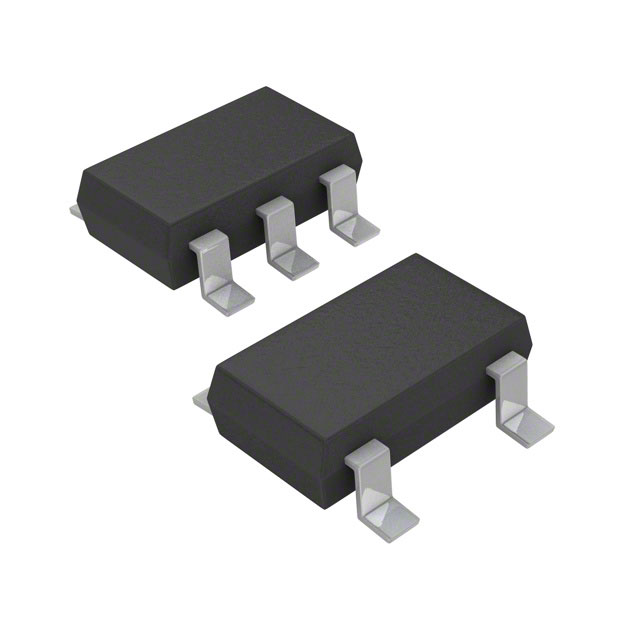

ANALOG DEVICES ADR395AUJZ-REEL7 电压基准, 微功率, 低噪, 系列 - 固定, ADR395系列, 5V, TSOT-5
**GENERAL DESCRIPTION**
The ADR390, ADR391, ADR392, and ADR395 are precision 2.048 V, 2.5 V, 4.096 V, and 5 V band gap voltage references, respectively, featuring low power and high precision in a tiny footprint. Using ’s patented temperature drift curvature correction techniques, the ADR39x references achieve a low 9 ppm/°C of temperature drift in the TSOT package.
**FEATURES**
**Compact TSOT-23-5 packages**
**Low temperature coefficient**
** B grade: 9 ppm/°C**
** A grade: 25 ppm/°C**
**Initial accuracy**
** B grade: ±4 mV maximum**
** A grade: ±6 mV maximum**
**Ultralow output noise: 5 µV p-p 0.1 Hz to 10 Hz**
**Low dropout: 300 mV**
**Low supply current**
** 3 µA maximum in shutdown**
** 120 µA maximum in operation**
**No external capacitor required**
**Output current: 5 mA**
**Wide temperature range**
** −40°C to + 125°C**
**APPLICATIONS**
**Battery-powered instrumentation**
**Portable medical instrumentation**
**Data acquisition systems**
**Industrial process controls**
**Automotive**
容差 ±0.12 %
输入电压DC 4.30V ~ 15.0V
输出电压 5 V
输出电流 5 mA
供电电流 140 µA
通道数 1
针脚数 5
输入电压Max 18 V
输出电压Max 5 V
输出电压Min 5 V
输出电流Max 5 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.12 %
输入电压 5.3V ~ 15V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 0.87 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃ TA
温度系数 ±25 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADR395AUJZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADR395AUJZ-R2 亚德诺 | 类似代替 | ADR395AUJZ-REEL7和ADR395AUJZ-R2的区别 |
