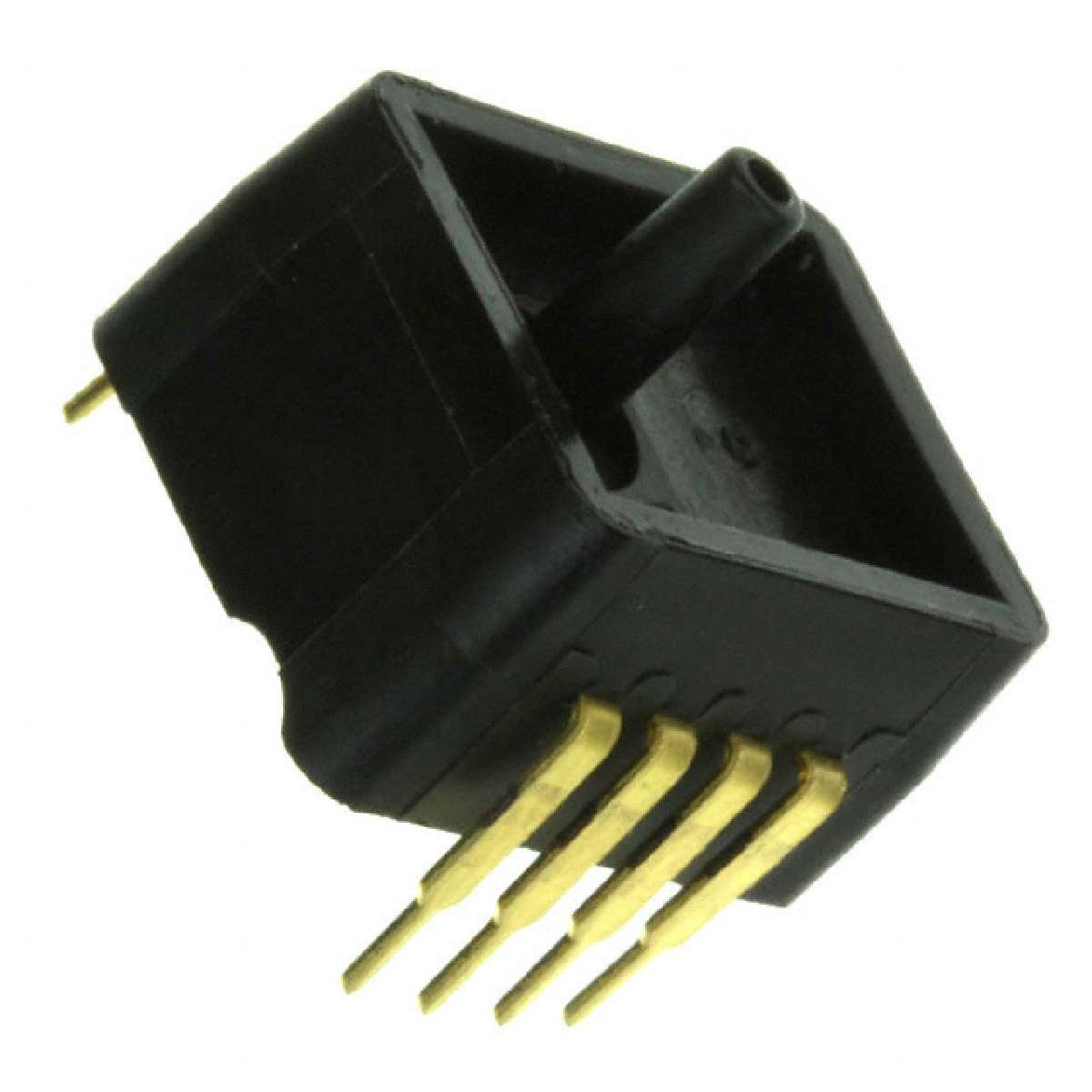

ASDXAVX100PG7A5

Pressure Sensor 0psi to 100psi Gage 8Pin DIP

The ASDX Digital Output Series pressure sensors are fully calibrated and temperature compensated with on-board Application Specific Integrated Circuitry ASIC. These DIP Dual In-line Package sensors provide digital correction of sensor offset, sensitivity, temperature coefficients and non-linearity and are designed for use with non-corrosive, non-ionic working fluids such as air and dry gases. The ASDX Series uses either SPI I2C-compatible protocol, which allows easy interfacing to most commonly used microcontrollers and microprocessors, without additional components and electronic circuitry. Sensor output is a corrected pressure value in hexadecimal format with 12-bit resolution.

.

*Features:**

* ASIC Enhanced Output

* Wide Compensated Temperature Range: 0°C to+ 85°C +32°F to +185°F

* Available in Absolute, Differential and Gage Types

* Pressure Ranges: From 0 psi to 1 psi through 0 psi to 30 psi

* Accuracy: ±2% Max. Full Scale Span

* Response Time of 1 ms **Typical Applications:**

* Medical Equipment

* Pneumatic Controls

* HVAC Controls

* Barometry
