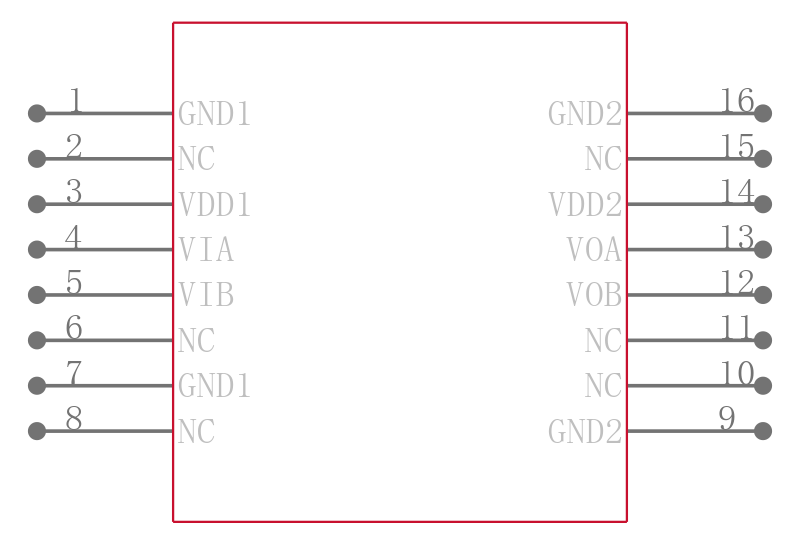

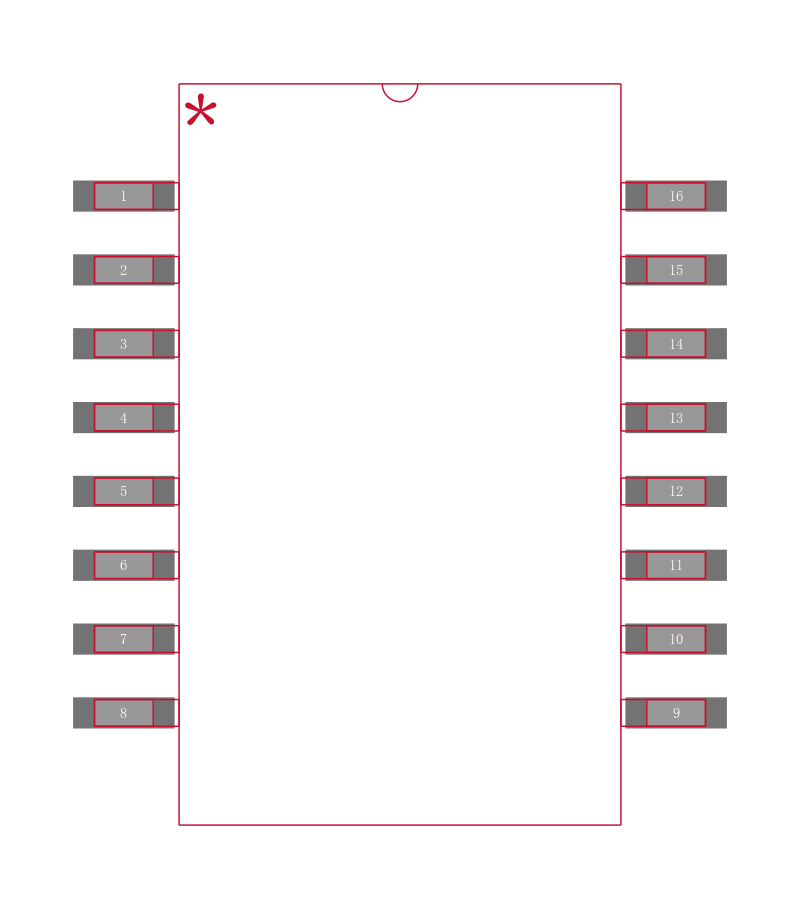

ADUM2200ARIZ-RL

Digital Isolator CMOS 2CH 1Mbps 16Pin SOIC T/R

Product Details

The ADuM2200/ADuM2201   are 2-channel digital isolators based on Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics that are superior to alternatives such as optocoupler devices.

By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with optocouplers. Typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with these iCoupler products. Furthermore, iCoupler devices consume one-tenth to one-sixth the power of optocouplers at comparable signal data rates.

The ADuM2200/ADuM2201 isolators provide two independent isolation channels in two channel configurations with data rates up to 10 Mbps see the Ordering Guide. Both parts operate with the supply voltage on either side ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems, as well as enabling voltage translation functionality across the isolation barrier. The ADuM2200/ADuM2201 isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and during power-up/power-down conditions.

Similar to the ADuM3200/ADuM3201 isolators, the ADuM2200/ADuM2201 isolators contain various circuit and layout enhancements that provide increased capability relative to system-level IEC 61000-4-x testing ESD, burst, and surge. The precise capability in these tests for either the ADuM3200/ADuM3201 or ADuM2200/ADuM2201 products is strongly determined by the design and layout of the user’s board or module. For more information, see the AN-793 Application Note, _ESD/Latch-Up Considerations with iCoupler Isolation Products._

**Applications**

.

General-purpose, high voltage, multichannel isolation

.

Medical equipment

.

Power supplies

.

RS-232/RS-422/RS-485 transceiver isolation

.

Hybrid electric vehicles, battery monitors, and motor drives

### Features and Benefits

.

Qualified for automotive applications

.

High isolation voltage:

5000 V rms

.

Enhanced system-level ESD performance per IEC

61000-4-x

.

Low power operation

5 V operation

3.3 V operation

.

3.3 V/5 V level translation

.

High temperature operation: 125°C

.

High data rate: dc to 10 Mbps NRZ

.

See Data Sheet for Additional Information
