ADUM2211SRIZ-RL

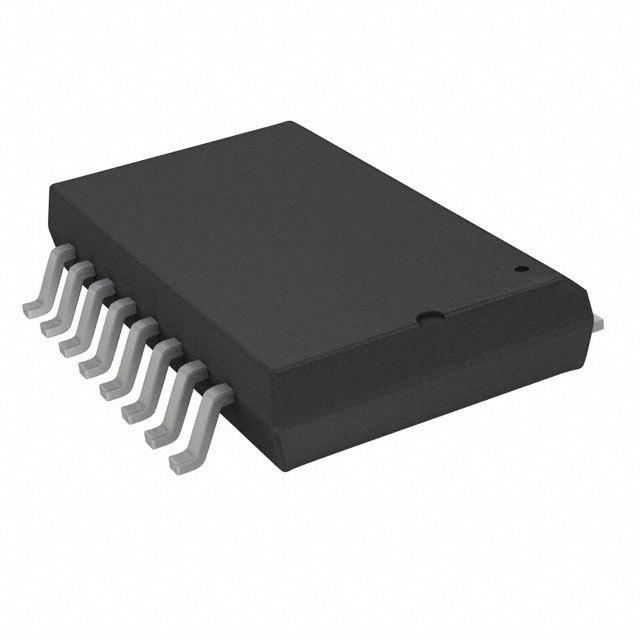

Digital Isolator CMOS 2CH 1Mbps 16Pin SOIC W T/R

Product Details

The ADuM2210/ADuM22111 are 2-channel digital isolators based on Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics that are superior to alternatives such as optocoupler devices.

By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with optocouplers.

Typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with these iCoupler products. Furthermore, iCoupler devices run at one-tenth to one-sixth the power of optocouplers at comparable signal data rates.

The ADuM2210/ADuM2211 isolators provide two independent isolation channels in a variety of channel configurations and data rates. They operate with the supply voltage of either side ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier. The ADuM2210W and ADuM2211W are automotive grade versions.

Similar to the ADuM3200/ADuM3201 isolators, the ADuM2210/ADuM2211 isolators contain various circuit and layout enhancements to provide increased capability relative to system-level IEC 61000-4-x testing ESD, burst, and surge. The precise capability in these tests for either the ADuM3200/ ADuM3201 or ADuM2210/ADuM2211 products is strongly determined by the design and layout of the user’s board or module. For more information, see the AN-793 Application Note, ESD/Latch-Up Considerations with iCoupler Isolation Products.

Applications

.

General-purpose, high voltage, multichannel isolation

.

Medical equipment

.

Power supplies

.

RS-232/RS-422/RS-485 transceiver isolation

.

Hybrid electric vehicles, battery monitors, and motor drives

### Features and Benefits

.

High isolation voltage: 5000 V rms

.

Enhanced system-level ESD performance per IEC 61000-4-x

.

Low power operation

5 V operation

1.6 mA per channel maximum at 0 Mbps to 1 Mbps

3.7 mA per channel maximum at 10 Mbps

3.3 V operation

1.4 mA per channel maximum at 0 Mbps to 1 Mbps

2.4 mA per channel maximum at 10 Mbps

.

3.3 V/5 V level translation

.

High temperature operation: 125°C

.

Default low output

.

High data rate: dc to 10 Mbps NRZ

.

Precise timing characteristics

3 ns maximum pulse width distortion

3 ns maximum channel-to-channel matching

.

Qualified for automotive applications

.

See Data Sheet for additional features
