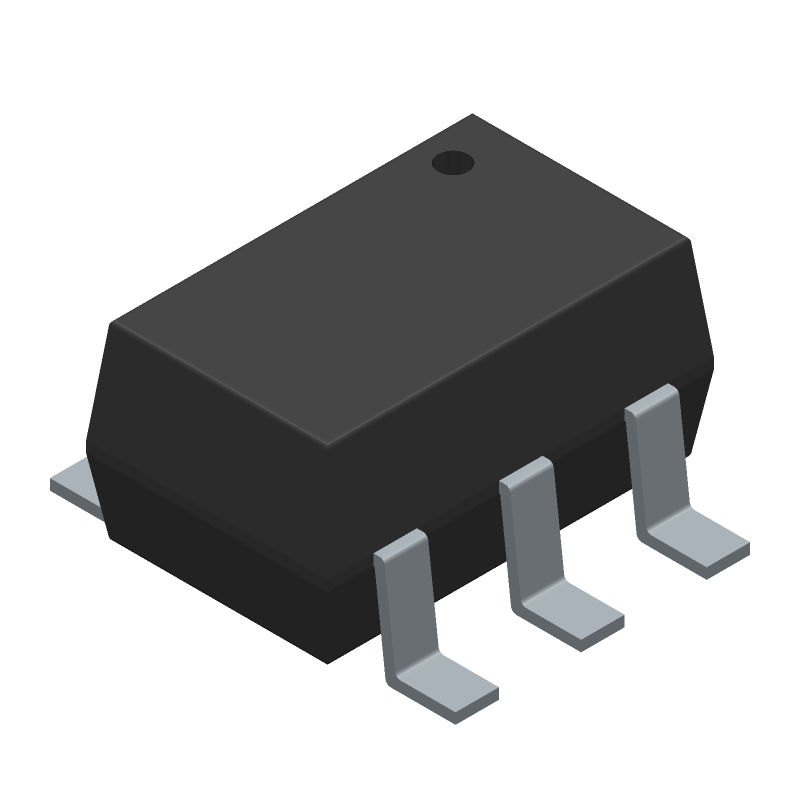

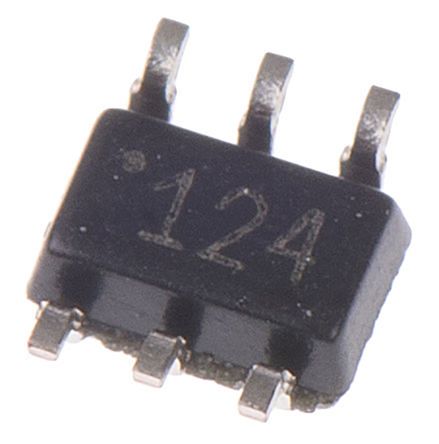

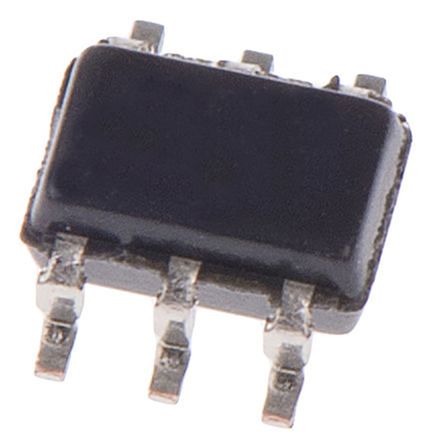

ANALOG DEVICES AD5622YKSZ-1500RL7 数模转换器, 12 bit, 1.7 kSPS, 串行, 2.7V 至 5.5V, SC-70, 6 引脚
数字到模拟转换器 12 位,单通道,带串行接口,Analog Devices
### 数字到模拟转换器 - Analog Devices
得捷:
IC DAC 12BIT V-OUT SC70-6
立创商城:
AD5622YKSZ-1500RL7
欧时:
Analog Devices AD5622YKSZ-1500RL7 , 12 位 DAC, I2C接口, 6引脚 SC-70封装
贸泽:
数模转换器- DAC IC 12-Bit w/I2C
艾睿:
Look no further! The AD5622YKSZ-1500RL7 DAC converter from Analog Devices can help you easily obtain an analog signal from a digital one. It has a voltage output. This device&s;s digital interface is serial 2-wire, i2c. This device is based on Resistor-String architecture. This DAC has a resolution of 12bit. This DAC has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device uses a single power supply.
安富利:
DAC 1-CH Resistor-String 12-bit 6-Pin SC-70 T/R
Chip1Stop:
DAC 1-CH Resistor-String 12-bit Automotive 6-Pin SC-70 T/R
Verical:
DAC 1-CH Resistor-String 12-bit Automotive 6-Pin SC-70 T/R
罗切斯特:
DAC 1-CH Resistor-String 12-bit Automotive 6-Pin SC-70 T/R
DeviceMart:
IC DAC 12BIT 3V MICROPWR SC70-6
输出接口数 1
通道数 1
针脚数 6
位数 12
耗散功率 0.5 mW
采样率 1.70 kHz
分辨率Bits 12.0
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 0.5 mW
数模转换数DAC 1
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 6
封装 SC-70-6
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SC-70-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5622YKSZ-1500RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5622YKSZ-1REEL7 亚德诺 | 完全替代 | AD5622YKSZ-1500RL7和AD5622YKSZ-1REEL7的区别 |
