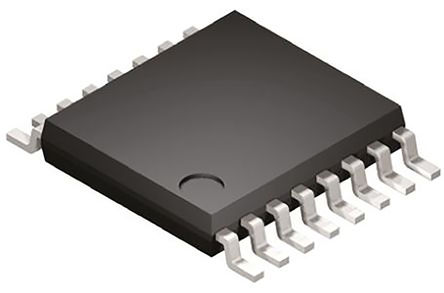

ANALOG DEVICES AD5231BRUZ50 芯片, 数字电位器, 50KΩ 1024 16-TSSOP
数字电位计(单,50KΩ),Analog Devices
### 数字电位计 - Analog Devices
得捷:
IC DGT POT 50KOHM 1024TP 16TSSOP
立创商城:
AD5231BRUZ50
欧时:
数字电位计(单,50KΩ),Analog Devices### 数字电位计 - Analog Devices
艾睿:
Digital Potentiometer 50kOhm 1024POS Non-Volatile Linear/Log 16-Pin TSSOP Tube
安富利:
Digital Potentiometer 1024POS 50KOhm Single 16-Pin TSSOP
Chip1Stop:
Digital Potentiometer 1024POS 50kOhm Single 16-Pin TSSOP Tube
Verical:
Digital Potentiometer 50kOhm 1024POS Non-Volatile Linear/Log 16-Pin TSSOP Tube
Newark:
# ANALOG DEVICES AD5231BRUZ50 Non Volatile Digital Potentiometer, 50 kohm, Single, Increment Decrement, Linear, -40%, +20%, 2.7 V
罗切斯特:
AD5231 - 10-Bit EEMEM Digital POT
DeviceMart:
IC POT DGTL 1024POS 16-TSSOP
电源电压DC 2.70V min
供电电流 0.0027 mA
电路数 1
针脚数 1024
电阻 50 kΩ
静态电流 2.70 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 16

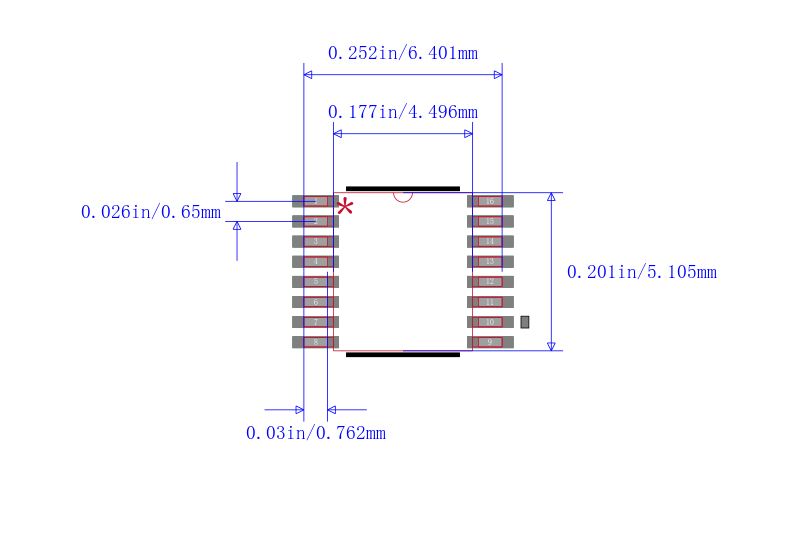

封装 TSSOP-16
长度 5 mm
宽度 4.4 mm
高度 1.05 mm
封装 TSSOP-16
工作温度 -40℃ ~ 85℃
温度系数 ±600 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5231BRUZ50 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5231BRU50-REEL7 亚德诺 | 完全替代 | AD5231BRUZ50和AD5231BRU50-REEL7的区别 |
AD5231BRU50 亚德诺 | 完全替代 | AD5231BRUZ50和AD5231BRU50的区别 |
AD5231BRUZ50-REEL7 亚德诺 | 类似代替 | AD5231BRUZ50和AD5231BRUZ50-REEL7的区别 |
