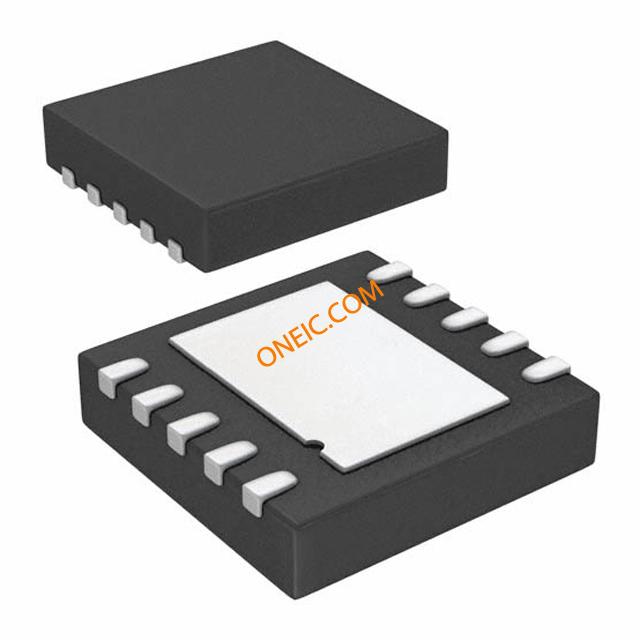

ANALOG DEVICES AD5623RBCPZ-5REEL7 数模转换器, 双路, 12 bit, 287 kSPS, 串行, 2.7V 至 3.6V, LFCSP, 10 引脚
12 位 2 10-LFCSP-WD(3x3)
得捷:
IC DAC 12BIT V-OUT 10LFCSP
立创商城:
AD5623RBCPZ-5REEL7
艾睿:
DAC 2-CH Resistor-String 12-bit 10-Pin LFCSP EP T/R
安富利:
The AD5623R member of the nanoDAC® family, are low power, dual 12-, 14-, and 16-bit buffered voltage- out digital-to-analog converters DAC that operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design.The AD5623R have an on-chip reference. The AD5623R-3/AD5643R-3/AD5663R-3 have a 1.25 V, 5 ppm/°C reference, giving a full-scale output of 2.5 V; and the AD5623R-5 have a 2.5 V, 5 ppm/°C reference, giving a full-scale output of 5 V. The on-chip reference is off at power-up, allowing the use of an external reference; and all devices can be operated from a single 2.7 V to 5.5 V supply. The internal reference is turned on by writing to the DAC.The parts incorporate a power-on reset circuit that ensures the DAC output powers up to 0 V and remains there until a valid write takes place. The part contains a power-down feature that reduces the current consumption of the device to 480 nA at 5 V and provides software-selectable output loads while in power- down mode.The low power consumption of this part in normal operation makes it ideally suited to portable, battery-operated equipment.The AD5623R use a versatile, 3-wire serial interface that operates at clock rates up to 50 MHz, and they are compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards. The on-chip precision output amplifier enables rail-to-rail output swing to be achieved.
Verical:
DAC 2-CH Resistor-String 12-bit 10-Pin LFCSP EP T/R
罗切斯特:
DAC 2-CH Resistor-String 12-bit 10-Pin LFCSP EP T/R
输出接口数 2
通道数 2
针脚数 10
位数 12
耗散功率 0.005 W
采样率 287 kHz
分辨率Bits 12.0
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 5 mW
电源电压 2.7V ~ 3.6V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 10
封装 LFCSP-10
封装 LFCSP-10
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
