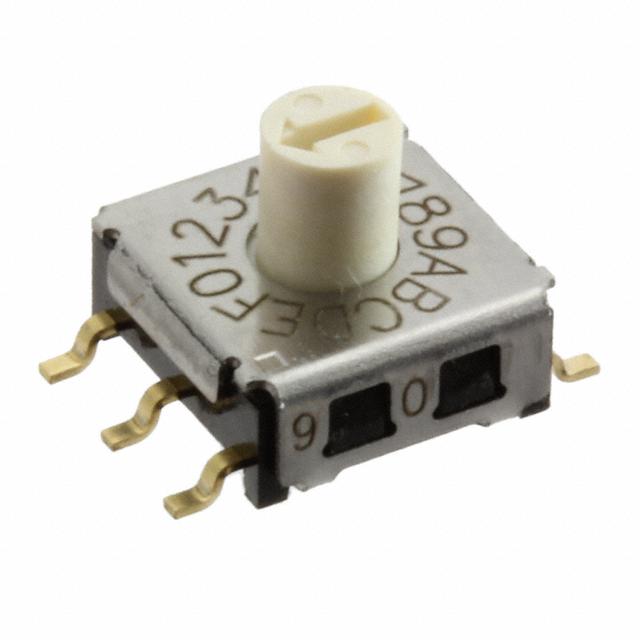

DIP Switches / SIP Switches Thru-Hole 3x3 Tm 16P Side, Ext Shaft, Wht
is manufactured by Elect and is categorized in the DIP Switches category. A6KV-162RS is described as SWITCH ROTARY DIP HEX 25MA 24V. Perfect Parts is a supplier of Switches and other Electromechanicals.
得捷:
SWITCH ROTARY DIP HEX 25MA 24V
贸泽:
DIP Switches / SIP Switches Thru-Hole 3x3 Tm 16P Side, Ext Shaft, Wht
艾睿:
Switch DIP N.O./N.C. SP16T 16 Extended Shaft 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube
Chip1Stop:
Switch DIP ON OFF SP16T 16 Extended Shaft 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube
Newark:
# OMRON ELECTRONIC COMPONENTS A6KV-162RS SMT Rotary DIP
MASTER:
Switch DIP N.O./N.C. SP16T 16 Extended Shaft 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube
Electro Sonic:
Switch DIP N.O./N.C. SP16T 16 Extended Shaft 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube
额定电压DC 24 V
额定电流 25 mA
绝缘电阻 100 MΩ
针脚数 16
接触电阻 200 mΩ
额定电流Max 0.025A @24VDC
工作温度Max 80 ℃
工作温度Min -30 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 200 mΩ
安装方式 Through Hole
封装 DIP
长度 7.2 mm
宽度 10.9 mm
高度 7.77 mm
封装 DIP
工作温度 -30℃ ~ 80℃
产品生命周期 Not Recommended for New Design
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
