AD7666ASTZRL

ADC Single SAR 500KSPS 16Bit Parallel/Serial 48Pin LQFP T/R

Product Details

The AD7666 is a 16-bit, 500 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains a high-speed 16-bit sampling ADC, an internal conversion clock, internal reference, error correction circuits, and both serial and parallel system interface ports.

It is fabricated using Analog Devices’ high-performance, 0.6 micron CMOS process, with correspondingly low cost and is available in a 48-lead LQFP and a tiny 48-lead LFCSP with operation specified from –40°C to +85°C.

### Features and Benefits

.

2.5 V Internal Reference: Typical Drift 3 ppm/ºC Guaranteed Max Drift 15 ppm/ºC

.

Throughput: 500 kSPS

.

INL: ±2.5 LSB Max ±0.0038% of Full Scale

.

16 Bits Resolution with No Missing Codes

S/N+D: 88 dB max @ 20 kHz; THD: -96 dB max @ 20 kHz \

.

Analog Input Voltage Range: 0 V to 2.5 V

.

No Pipeline Delay

.

Parallel and Serial 5 V/3 V Interface

.

SPI®/QSPI™/MICROWIRE™/DSP Compatible

.

Single 5 V Supply Operation

.

Power Dissipation:

66 mW typ, 132 µW @ 1 kSPS

without REF 81 mW typ with REF

.

Package:

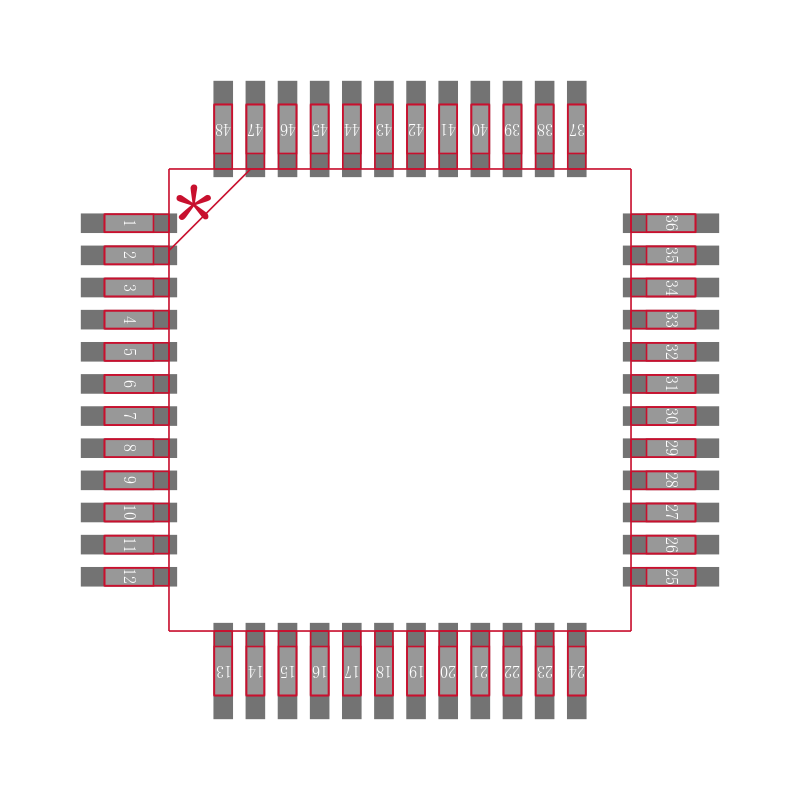

48-Lead Quad Flat Pack LQFP

48-Lead Chip Scale Package LFCSP

Pin-to-Pin Compatible with

PulSAR® ADCs
