AD676JN

16位100 kSPS的采样ADC 16-Bit 100 kSPS Sampling ADC

Product Details

The AD676 is a multipurpose 16-bit parallel output analog-to-digital converter which utilizes a switched-capacitor/charge redistribution architecture to achieve a 100 kSPS conversion rate 10 µs total conversion time. Overall performance is optimized by digitally correcting internal nonlinearities through on-chip autocalibration.

The AD676 circuitry is segmented onto two monolithic chips- a digital control chip fabricated on Analog Devices DSP CMOS process and an analog ADC chip fabricated on our BiMOS II process. Both chips are contained in a single package.

The AD676 is specified for ac or "dynamic" parameters such as S/N+D Ratio, THD and IMD which are important in signal processing applications. In addition, dc parameters are specified which are important in measurement applications.

The AD676 operates from +5 V and ±12 V supplies and typically consumes 360 mW during conversion. The digital supply VDD is separated from the analog supplies VCC , VEE for reduced digital crosstalk. An analog ground sense is provided for the analog input. Separate analog and digital grounds are also provided.

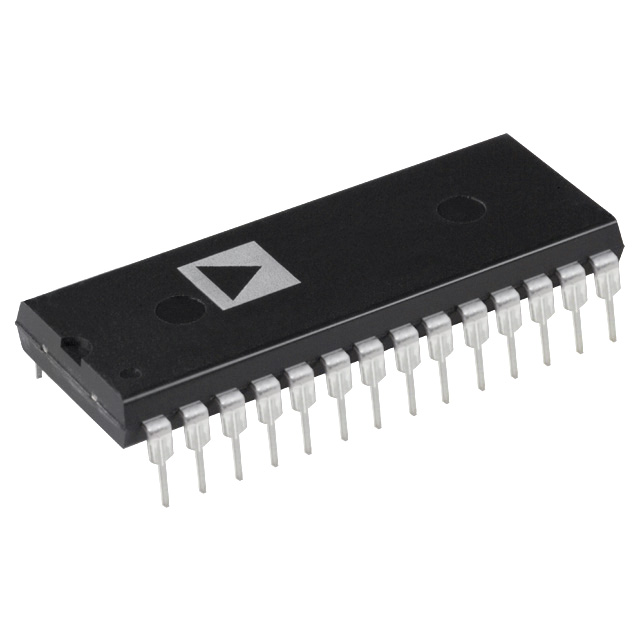

The AD676 is available in a 28-pin plastic DIP or 28-pin side-brazed ceramic package. A serial-output version, the AD677, is available in a 16-pin 300 mil wide ceramic or plastic package.

### Features and Benefits

.

Auto-calibrating

.

On-Chip Sample-Hold Function

.

Parallel Output Format

.

16 Bits No Missing Codes

.

±1 LSB INL

.

–97 dB THD

.

90 dB S/N+D

.

1 MHz Full Power Bandwidth
