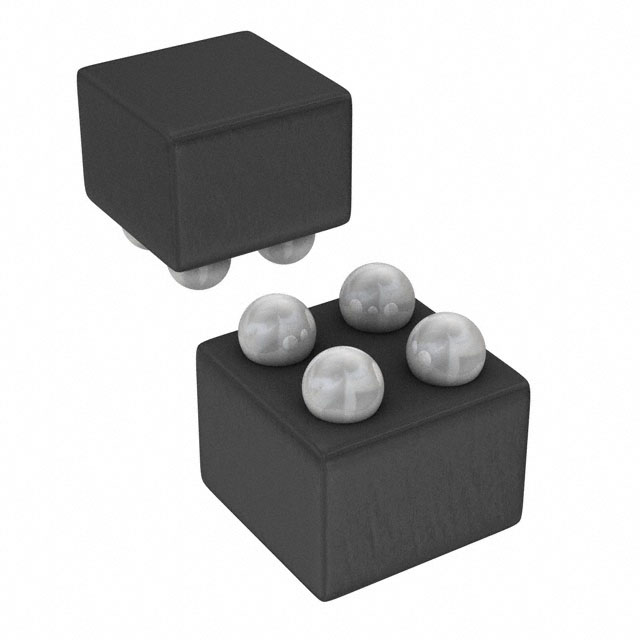

ANALOG DEVICES ADP121-ACBZ25R7 固定电压稳压器, LDO, 2.3V至5.5V, 90mV压差, 2.5V输出, 150mA输出, WLCSP-4
PMIC - 稳压器 - 线性 正 固定 输出 150mA 4-WLCSP(0.82x0.82)
得捷:
IC REG LINEAR 2.5V 150MA 4WLCSP
立创商城:
ADP121-ACBZ25R7
艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO ADP121-ACBZ25R7 linear regulator manufactured by Analog Devices. Its typical dropout voltage at current is 0.09@150mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. By only needing an input voltage of 2.3 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Users like the load regulation of 0.001%/mATyp and line regulation of 0.03%/V. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
Chip1Stop:
LDO Regulator Pos 2.5V 0.15A 4-Pin WLCSP T/R
Verical:
LDO Regulator Pos 2.5V 0.15A 4-Pin WLCSP T/R
Newark:
# ANALOG DEVICES ADP121-ACBZ25R7 Fixed LDO Voltage Regulator, 2.3V to 5.5V In, 90mV Dropout, 2.5V/150mA Out, WLCSP-4
输出接口数 1
输出电压 2.5 V
输出电流 150 mA
供电电流 21µA ~ 40µA
针脚数 4
跌落电压 90 mV
输入电压Max 5.5 V
输入电压Min 2.3 V
输出电压Min 2.5 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2.3V ~ 5.5V
安装方式 Surface Mount
引脚数 4
封装 WLCSP-4
封装 WLCSP-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 LED General Lighting, White Goods and Vending, Building Control and Automation, Building Technology
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP121-ACBZ25R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP150ACBZ-2.5-R7 亚德诺 | 类似代替 | ADP121-ACBZ25R7和ADP150ACBZ-2.5-R7的区别 |
ADP120-ACBZ25R7 亚德诺 | 类似代替 | ADP121-ACBZ25R7和ADP120-ACBZ25R7的区别 |
