300毫安,低静态电流, CMOS线性稳压器 300 mA, Low Quiescent Current, CMOS Linear Regulators
Product Details
The ADP170/ADP171/ADP172 are low voltage input, low quiescent current, low-dropout LDO linear regulators that operate from 1.6 V to 3.6 V and provide up to 300 mA of output current. The low 55 mV dropout voltage at 300 mA load improves efficiency and allows operation over a wide input voltage range. The low 23 μA of quiescent current at no load makes the ADP170/ADP171/ADP172 ideal for battery-operated portable equipment.
The ADP170 is capable of 31 fixed-output voltage options, ranging from 0.8 V to 3.0 V. ADP171 is an adjustable version, which allows output voltages that range from 0.8 V to 3.0 V via an external divider. The ADP170/ADP171 are optimized for stable operation with small 1 μF ceramic output capacitors. Ideal for powering digital processors, the ADP170/ADP171 exhibit good transient performance and occupy minimal board space. Compared with commodity types of LDOs, the ADP170/ADP171 provide 20 dB to 40 dB better power supply rejection ratio PSRR at 100 kHz, making the ADP170/ADP171 an ideal power source for analog-to-digital converter ADC mixed-signal processor systems and allowing use of smaller size bypass capacitors. In addition, low output noise performance without the need for an additional bypass capacitor further reduces printed circuit board PCB component count.
Short-circuit protection and thermal overload protection circuits prevent damage in adverse conditions. The ADP170/ADP171 are available in tiny 5-lead TSOT for the smallest footprint solution to meet a variety of portable power applications.
**Applications**
* Mobile phones
* Digital camera and audio devices
* Portable and battery-powered equipment
* DSP/FPGA/microprocessor supplies
* Post dc-dc regulation
### Features and Benefits
IGND = 23 μA with 0 mA load
IGND = 170 μA with 300 mA load
0.8 V to 3.0 V ADP171
输出接口数 1
输出电压 1.5 V
输出电流 300 mA
供电电流 260 µA
跌落电压 0.066V @300mA
输入电压Max 3.6 V
输入电压Min 1.6 V
输出电流Max 0.3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 1.6V ~ 3.6V
安装方式 Surface Mount
引脚数 5

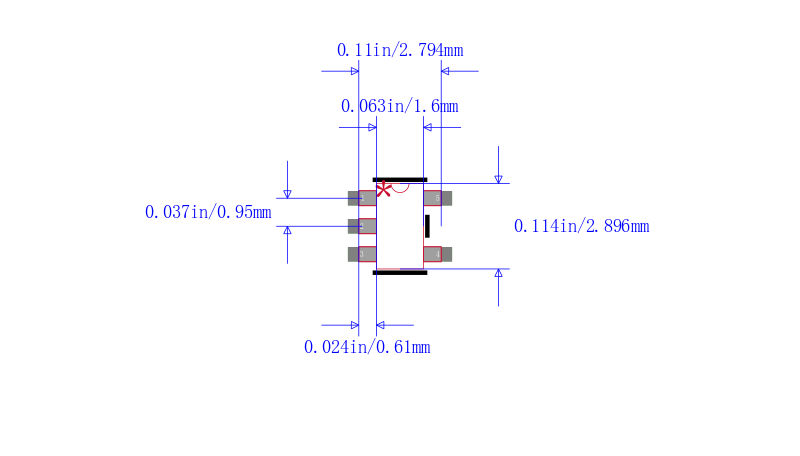

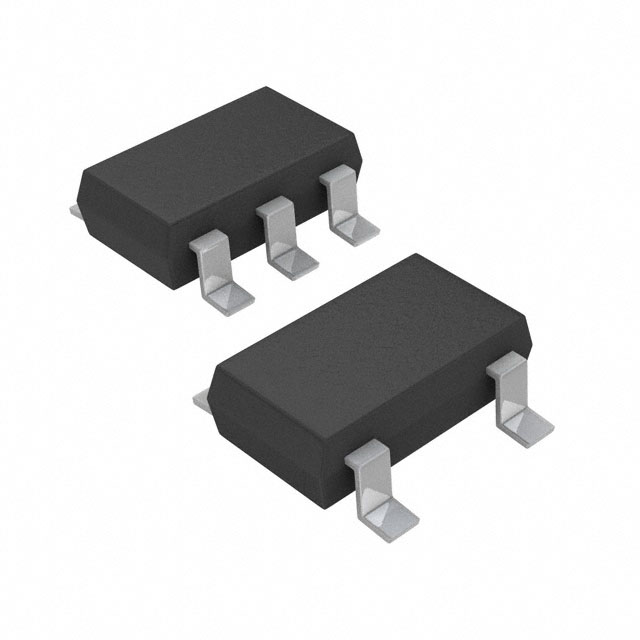

封装 TSOT-23-5
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP170AUJZ-1.5-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP121-AUJZ15R7 亚德诺 | 类似代替 | ADP170AUJZ-1.5-R7和ADP121-AUJZ15R7的区别 |
ADP151AUJZ-1.5-R7 亚德诺 | 类似代替 | ADP170AUJZ-1.5-R7和ADP151AUJZ-1.5-R7的区别 |
ADP1712AUJZ-1.5-R7 亚德诺 | 类似代替 | ADP170AUJZ-1.5-R7和ADP1712AUJZ-1.5-R7的区别 |
