监控电路 IMPROVED ADM699
Control the core processor in case of failure with the microprocessor supervisory circuit, developed by Analog Devices. This device has a maximum power dissipation of 375 mW. Its maximum power dissipation is 375 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a typical reset threshold voltage of 4.65 V, with a minimum of 4.5 V and a maximum of 4.75 V. This device has a minimum operating supply voltage of 3 V and a maximum of 5.5 V. This part has an operating temperature range of -40 °C to 85 °C.
电源电压DC 5.50V max
供电电流 0.1 mA
耗散功率 375 mW
阈值电压 4.65 V
复位电压Min 4.5 V
复位电压Max 4.75 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 375 mW
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16

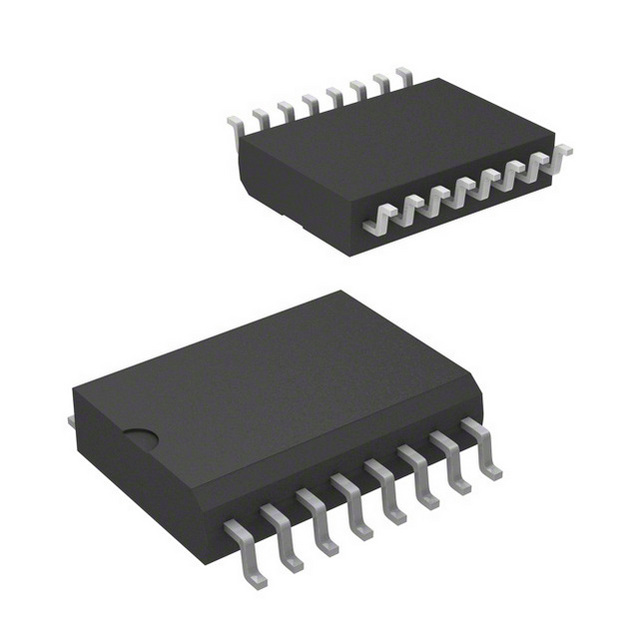

封装 SOIC-16
长度 10.5 mm
宽度 7.6 mm
高度 2.35 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 End of Life
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADM8699ARWZ ADI 亚德诺 | 当前型号 | 当前型号 |
ADM8699ARW-REEL 亚德诺 | 完全替代 | ADM8699ARWZ和ADM8699ARW-REEL的区别 |
