AD8005ARZ-REEL7

运算放大器 - 运放 270MHz 400uA Current Feedback

Product Details

The AD8005 is an ultralow power, high speed amplifier with a wide signal bandwidth of 170 MHz and slew rate of 280 V/µs. This performance is achieved while consuming only 400 µA of quiescent supply current. These features increase the operating time of high speed battery-powered systems without reducing dynamic performance.

The current feedback design results in gain flatness of 0.1 dB to 30 MHz while offering differential gain and phase errors of 0.11% and 0.4°. Harmonic distortion is low over a wide bandwidth with THDs of –63 dBc at 1 MHz and –50 dBc at 10 MHz. Ideal features for a signal conditioning amplifier or buffer to a high speed A-to-D converter in portable video, medical or communication systems.

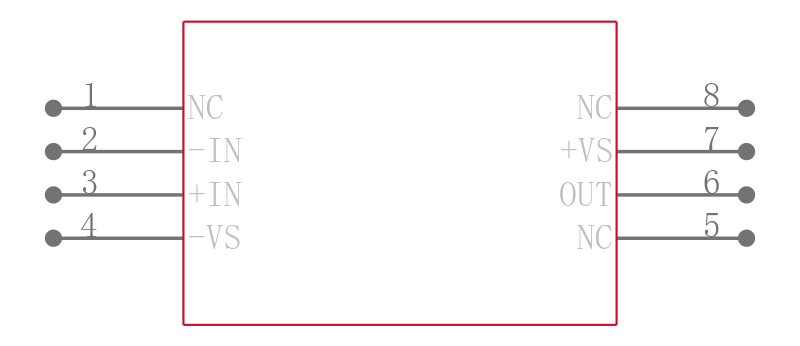

The AD8005 is characterized for +5 V and ±5 V supplies and will operate over the industrial temperature range of –40°C to +85°C. The amplifier is supplied in 8-pin DIP, 8-pin SOIC & 5-pin SOT-23 packages.

**Applications**

.

Signal conditioning

.

A/D buffer

.

Power sensitive, high speed systems

.

Battery powered equipment

.

Loop/remote power systems

.

Communication or video test systems

.

Portable medical instruments

### Features and Benefits

.

Low Distortion/Noise

–63 dBc @ 1 MHz, VO = 2 V p-p

–50 dBc @ 10 MHz, VO = 2 V p-p

4.0 nV/vHz Input Voltage Noise @ 10 MHz

.

High Speed

270 MHz, –3 dB Bandwidth G = +1

170 MHz, –3 dB Bandwidth G = +2

280 V/µs Slew Rate G = +2

28 ns Settling Time to 0.1%, 2 V Step G = +2

.

Ultralow Power

400 µA Power Supply Current

4 mW on ± VS

Specified for Single Supply Operation

.

Good Video Specifications

RL = 1 kΩ, G = +2

Gain Flatness 0.1 dB to 30 MHz

0.11% Differential Gain Error

0.4° Differential Phase Error
