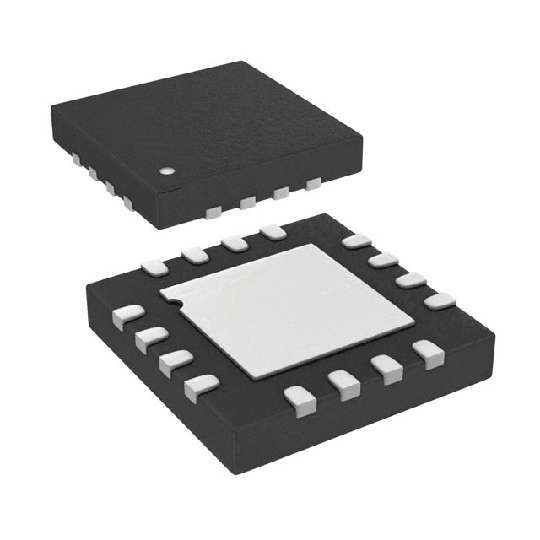

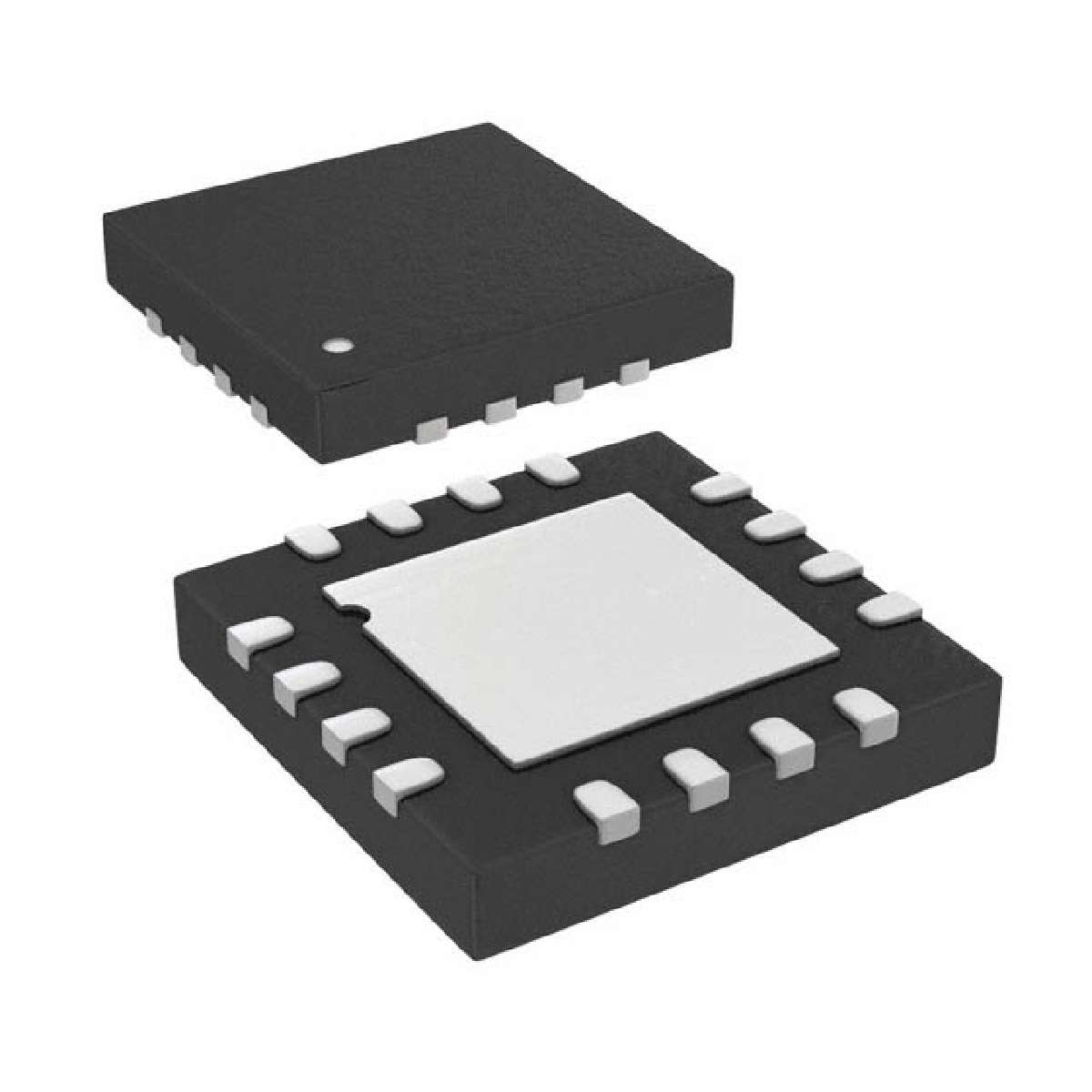

OP Amp Quad GP R-R I/O ±15V/30V 16Pin LFCSP EP T/R
Product Details
The ADA4096-2 dual and ADA4096-4 quad operational amplifiers feature micropower operation and rail-to-rail input and output ranges. The extremely low power requirements and guaranteed operation from 3 V to 30 V make these amplifiers perfectly suited to monitor battery usage and to control battery charging. Their dynamic performance, including 27 nV/√Hz voltage noise density, recommends them for battery-powered audio applications. Capacitive loads to 200 pF are handled without oscillation.
The ADA4096-2 and ADA4096-4 have overvoltage protection inputs and diodes that allow the voltage input to extend 32 V above and below the supply rails, making this device ideal for robust industrial applications. The ADA4096-2 and ADA4096-4 feature a unique input stage that allows the input voltage to exceed either supply safely without any phase reversal or latch-up; this is called overvoltage protection, or OVP.
The dual ADA4096-2 is available in 8-lead LFCSP 2 mm × 2 mm and 8-lead MSOP packages. The ADA4096-2 is available in 16-lead LFCSP 3 mm × 3 mm and 14-lead TSSOP packages. The ADA4096-2W is qualified for automotive applications and is available in an 8-lead MSOP package.
The ADA4096-2 family is specified over the extended industrial temperature range of −40°C to +125°C and is part of the growing selection of 30 V, low power op amps from Analog Devices, Inc.
**Applications**
### Features and Benefits
供电电流 60 µA
电路数 4
通道数 4
共模抑制比 95.0 dB
输入电容 7.00 pF
增益频宽积 786 kHz
输入补偿电压 35 µV
输入偏置电流 3 nA
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 1.52 MHz
共模抑制比Min 72 dB
安装方式 Surface Mount
引脚数 16
封装 WFQFN-16
封装 WFQFN-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADA4096-4ACPZ-RL ADI 亚德诺 | 当前型号 | 当前型号 |
ADA4096-4ARUZ-RL 亚德诺 | 类似代替 | ADA4096-4ACPZ-RL和ADA4096-4ARUZ-RL的区别 |
ADA4096-4ARUZ 亚德诺 | 功能相似 | ADA4096-4ACPZ-RL和ADA4096-4ARUZ的区别 |
ADA4096-4ACPZ-R7 亚德诺 | 功能相似 | ADA4096-4ACPZ-RL和ADA4096-4ACPZ-R7的区别 |
