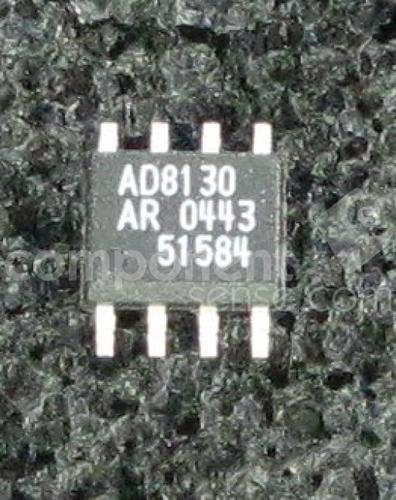

低成本的270 MHz差分接收器放大器 Low-Cost 270 MHz Differential Receiver Amplifiers
Reduce sound distortion by implementing this differential receiver differential amplifier from Analog Devices into your electronic circuit. Its typical dual supply voltage is ±3|±5|±9|±12 V, with a minimum of ±2.25 V and maximum of ±12.6 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device uses one or two power supplies. It has a single channel per chip.
输出电流 35mA @5V
供电电流 13 mA
电路数 1
通道数 1
共模抑制比 86 dB
转换速率 1.09 kV/μs
增益频宽积 110 MHz
输入补偿电压 400 µV
输入偏置电流 500 nA
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 290 MHz
增益带宽 86 dB
共模抑制比Min 85dB ~ 95dB
电源电压Max 20V ~ 30V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8

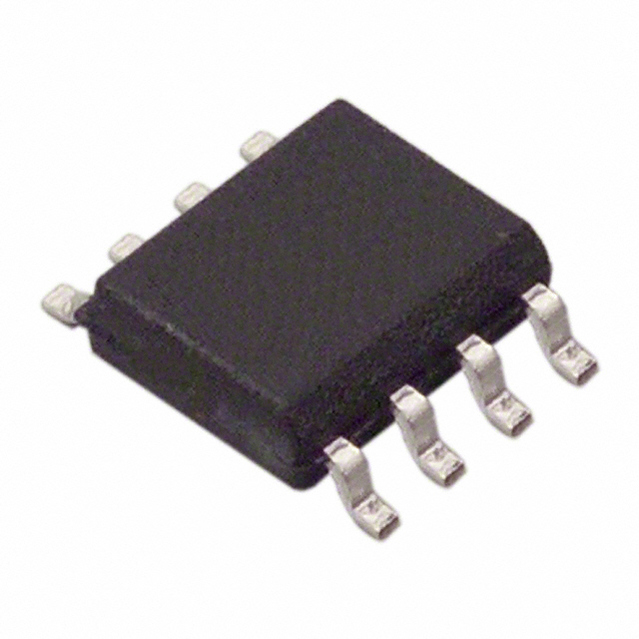

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8130AR ADI 亚德诺 | 当前型号 | 当前型号 |
AD8130ARZ-REEL7 亚德诺 | 完全替代 | AD8130AR和AD8130ARZ-REEL7的区别 |
AD8130AR-REEL 亚德诺 | 完全替代 | AD8130AR和AD8130AR-REEL的区别 |
AD8130ARZ 亚德诺 | 类似代替 | AD8130AR和AD8130ARZ的区别 |
