低成本,高速,轨到轨输出运算放大器 Low Cost, High Speed, Rail-to-Rail, Output Op Amps
GENERAL DESCRIPTION
The ADA4851-1 single/ADA4851-2 dual/ADA4851-4 quad are low cost, high speed, voltage feedback rail-to-rail output op amps. Despite their low price, these parts provide excellent overall performance and versatility. The 130 MHz, −3 dB bandwidth and high slew rate make these amplifiers well suited for many general-purpose, high speed applications.
FEATURES
High speed
130 MHz, −3 dB bandwidth
375 V/μs slew rate
55 ns settling time to 0.1%
Excellent video specifications
0.1 dB flatness: 11 MHz
Differential gain: 0.08%
Differential phase: 0.09°
Fully specified at +3 V, +5 V, and ±5 V supplies
Rail-to-rail output
Output swings to within 60 mV of either rail
Low voltage offset: 0.6 mV
Wide supply range: 2.7 V to 12 V
Low power: 2.5 mA/amplifier
Power-down mode
Available in space-saving packages
6-lead SOT-23, 8-lead MSOP, and 14-lead TSSOP
APPLICATIONS
Automotive infotainment systems
Automotive driver assistance systems
Consumer video
Professional video
Video switchers
Active filters
Clock buffers
供电电流 2.9 mA
电路数 4
通道数 4
共模抑制比 105 dB
输入电容 1.20 pF
增益频宽积 70.0 MHz
输入阻抗 5.00 MΩ
输入补偿电压 600 µV
输入偏置电流 2.2 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 105 MHz
电源电压Max 12 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 14

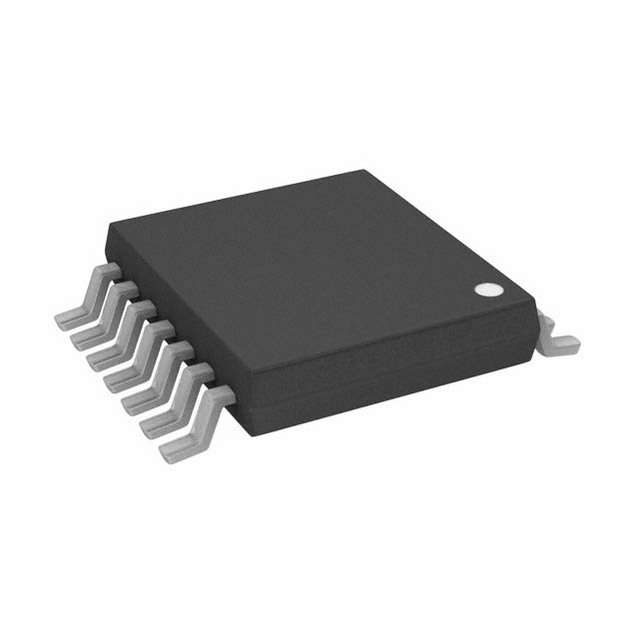

封装 TSSOP-14
宽度 4.4 mm
高度 1 mm
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Video Surveillance, Security and Surveillance
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
军工级 No
