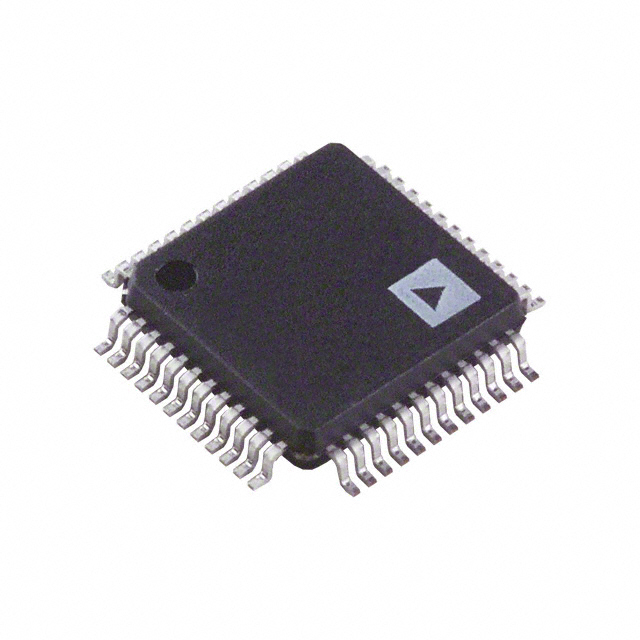

监控电路 Super Sequencer w/ Readback 12B ADC
Have an extra layer of protection from under and overvoltage conditions in a circuit, keeping all your components safe with this power supply sequencer voltage monitor IC from Analog Devices. The item will be shipped in tray orientation. This voltage supervisor IC has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device has a minimum operating supply voltage of 3 V and a maximum of 14.4 V. It has a minimum reset threshold voltage of 0.573 V and a maximum of 1.375 V.
供电电流 6 mA
时钟频率 400 kHz
阈值电压 Adjustable
分辨率Bits 12.0
复位电压Min 0.573 V
复位电压Max 1.375 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 14.4 V
电源电压Min 3 V
安装方式 Surface Mount

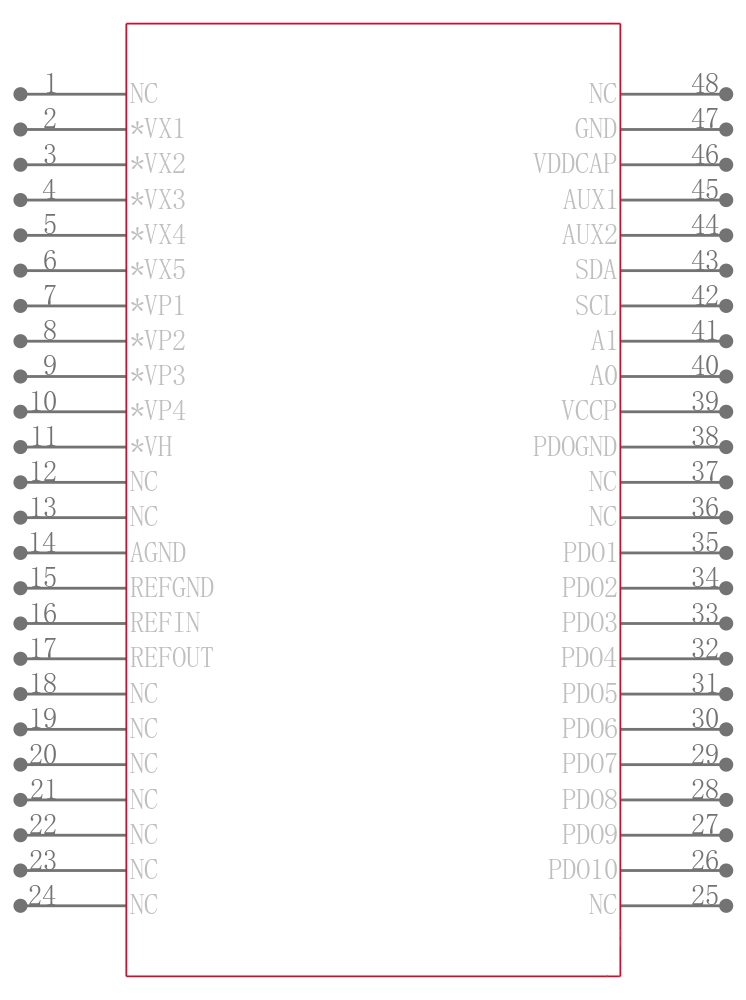

引脚数 48

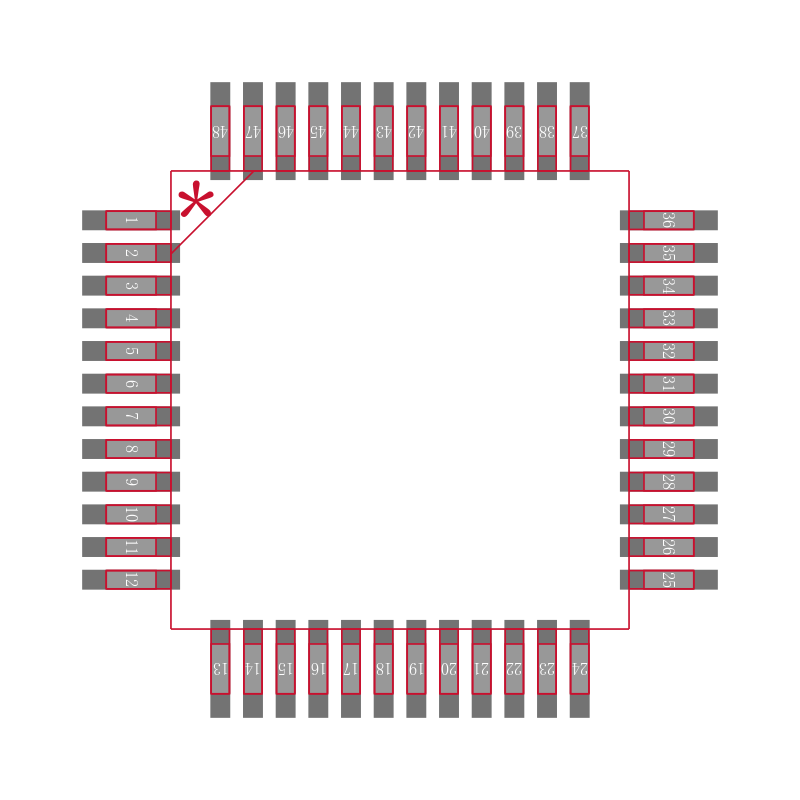

封装 TQFP-48

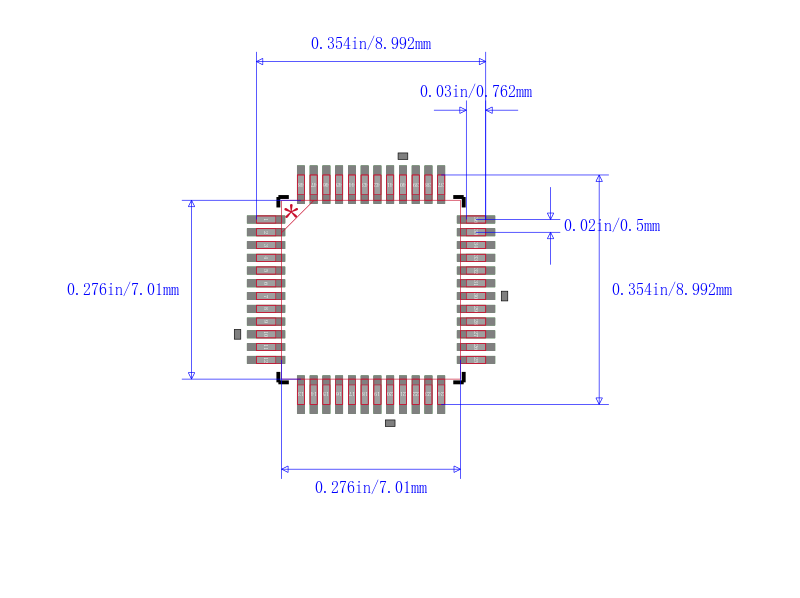

长度 7 mm
宽度 7 mm
高度 1 mm
封装 TQFP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM1064ASUZ ADI 亚德诺 | 当前型号 | 当前型号 |
ADM1064ASU 亚德诺 | 完全替代 | ADM1064ASUZ和ADM1064ASU的区别 |
ADM1064ASU-REEL 亚德诺 | 功能相似 | ADM1064ASUZ和ADM1064ASU-REEL的区别 |
ADM1064ASU-REEL7 亚德诺 | 功能相似 | ADM1064ASUZ和ADM1064ASU-REEL7的区别 |
