ADP3338AKC-3.3-RL

高精度，超低我低压差稳压器 High Accuracy, Ultralow I Low Dropout Regulator

GENERAL DESCRIPTION

The ADP3338 is a member of the ADP33xx family of precision, low dropout LDO, anyCAP voltage regulators. The ADP3338 operates with an input voltage range of 2.7V to 8V and delivers a load current up to 1A. The ADP3338 stands out from conventional LDOs with a novel architecture and an enhanced process that offers performance advantages and higher output current than its competition. Its patented design requires only a 1µF output capacitor for stability.

FEATURES

High accuracy over line and load: ±0.8% @ 25°C, ±1.4% over temperature

Ultralow dropout voltage: 190mV typ @ 1A

Requires only CO= 1.0µF for stability

anyCAP is stable with any type of capacitor including MLCC

Current and thermal limiting

Low noise

2.7V to 8V supply range

−40°C to +85°C ambient temperature range

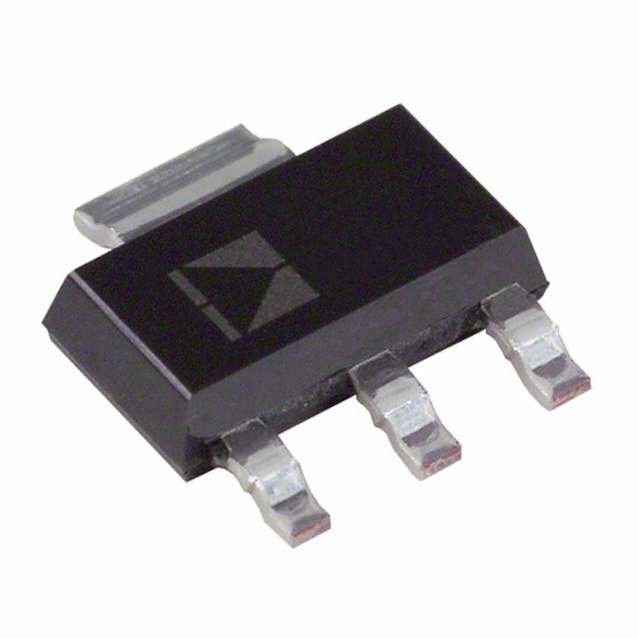

SOT-223 package

APPLICATIONS

Notebook, palmtop computers

SCSI terminators

Battery-powered systems

Bar code scanners

Camcorders,cameras

Home entertainment systems

Networking systems

DSP/ASIC supplies
