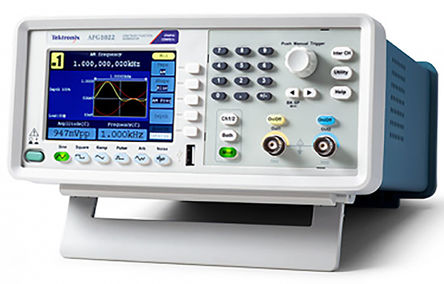

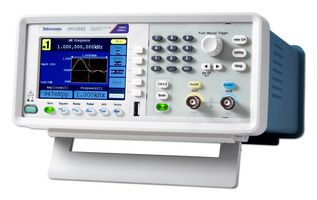

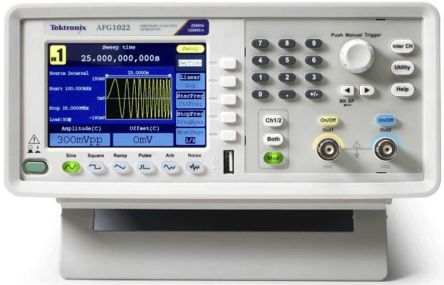

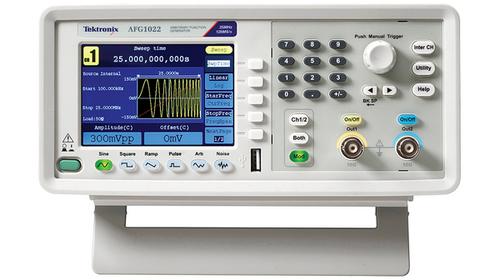

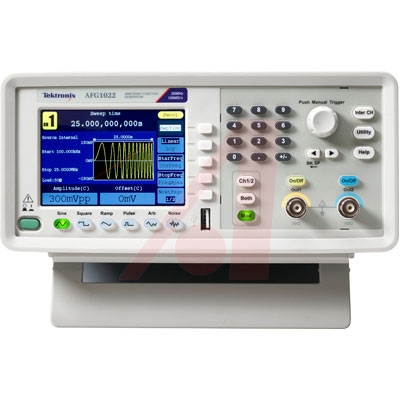

AFG1022

TEKTRONIX  AFG1022  信号发生器, 2通道, 任意/函数, 25MHZ

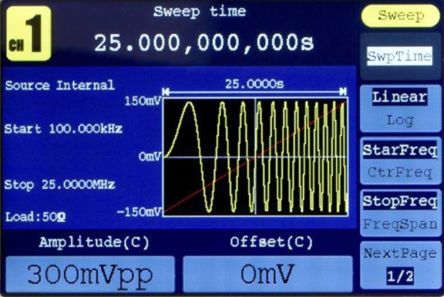

The Arbitrary Function Generator provides a waveform generation tool with the best price performance ratio. It includes dual channel, 25 MHz bandwidth and up-to 10 Vp-p output amplitude. The four run modes, 50 built-in frequently-used waveforms and the built-in 200 MHz frequency counter cover most waveform generation needs in your experiment and test jobs. The 3.95-inch TFT LCD, short-cut buttons, USB interface and PC software provide the most intuitive ways to configure the instrument.

.

125 MS/s sampling rate and 14-bit vertical resolution enable great signal fidelity

.

1 mVp-p to 10 Vp-p output amplitude over the whole frequency range

.

The intuitive user interface shortens the learning curve for students and other users

.

2 to 8,192-point length of memory for user-defined arbitrary waveforms

.

64-MByte internal non-volatile memory for arbitrary waveform storage

.

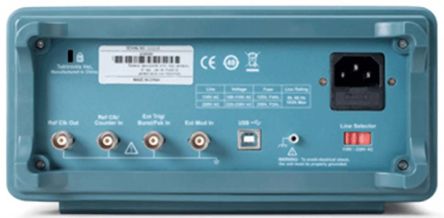

Standard USB host/device for memory expansion and remote control

.

Menu and online help are in English and Simplified Chinese

.

Compact form factor for stacking on other bench instruments to save valuable bench space

.

Free ArbExpress makes user defined waveforms editing extremely easy

.

Compatible with TekSmartLab™ for easy teaching and learning
