DC至1000 MHz中频增益模块 DC to 1000 MHz IF Gain Block
Product Details
The ADL5530 is a broadband, fixed-gain, linear amplifier that operates at frequencies up to 1000 MHz. The device can be used in a wide variety of wired and wireless devices, including cellular, broadband, CATV, and LMDS/MMDS applications.
The ADL5530 provides a gain of 16.5 dB, which is stable over frequency, temperature, power supply, and from device to device. It achieves an OIP3 of 37 dBm with an output compression point of 21.8 dB and a noise figure of 3 dB.
This amplifier is single-ended and internally matched to 50 Ω with an input return loss of 11 dB. Only input/output ac-coupling capacitors, a power supply decoupling capacitor, and an external inductor are required for operation.
The ADL5530 operates with supply voltages of 3 V or 5 V with a supply current of 110 mA.
The ADL5530 is fabricated on a GaAs pHEMPT process. The device is packaged in a 3 mm × 2 mm LFCSP that uses an exposed paddle for excellent thermal impedance. It operates from −40°C to +85°C. A fully populated evaluation board is also available.
**Applications**
### Features and Benefits
频率 0Hz ~ 1GHz
电源电压DC 5.00 V
供电电流 110mA ~ 135mA
通道数 1
耗散功率 550 mW
带宽 1 GHz
增益 13dB ~ 16dB
测试频率 900 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 550 mW
电源电压 3V ~ 5V
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 8

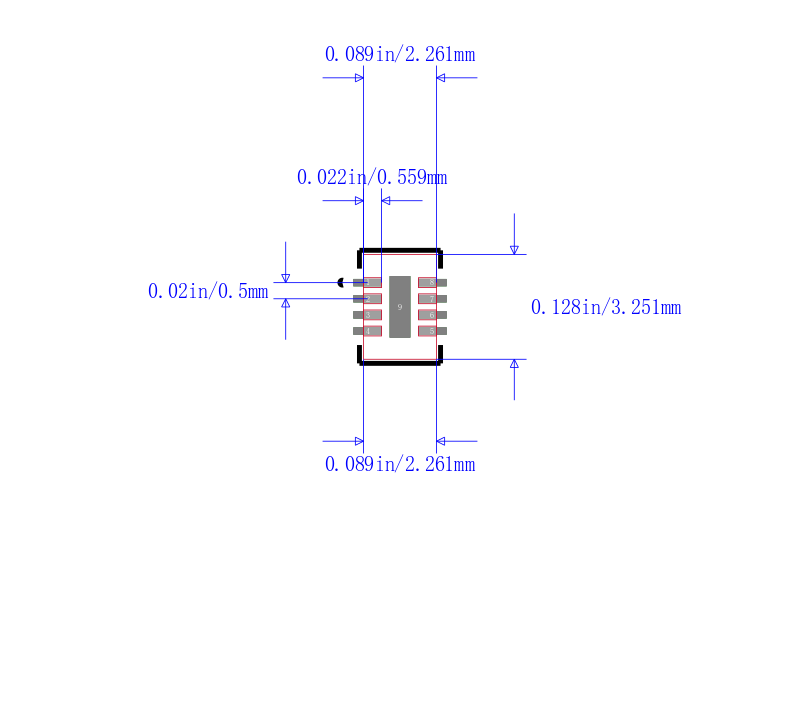

封装 LFCSP-8
长度 3.00 mm
宽度 2.00 mm
高度 0.83 mm
封装 LFCSP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADL5530ACPZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADL5530ACPZ-WP 亚德诺 | 类似代替 | ADL5530ACPZ-R7和ADL5530ACPZ-WP的区别 |
