ADRF5021BCCZN-R7

RF 开关 IC High isolation SPDT, 30GHz, low cut-off

Product Details

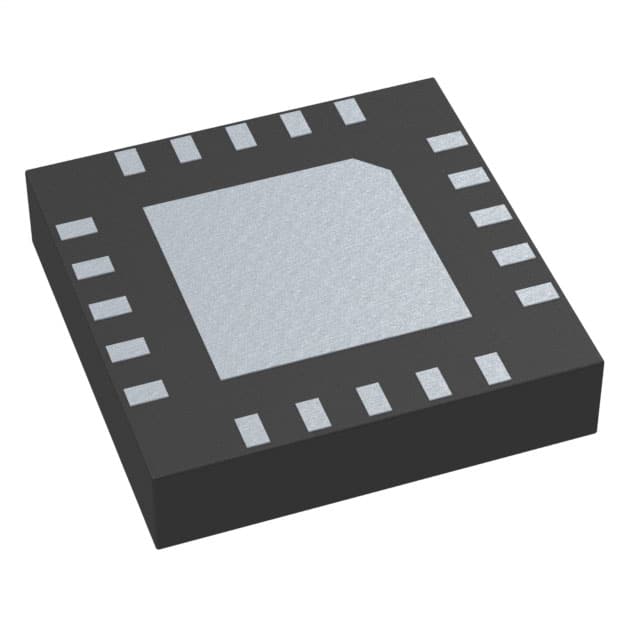

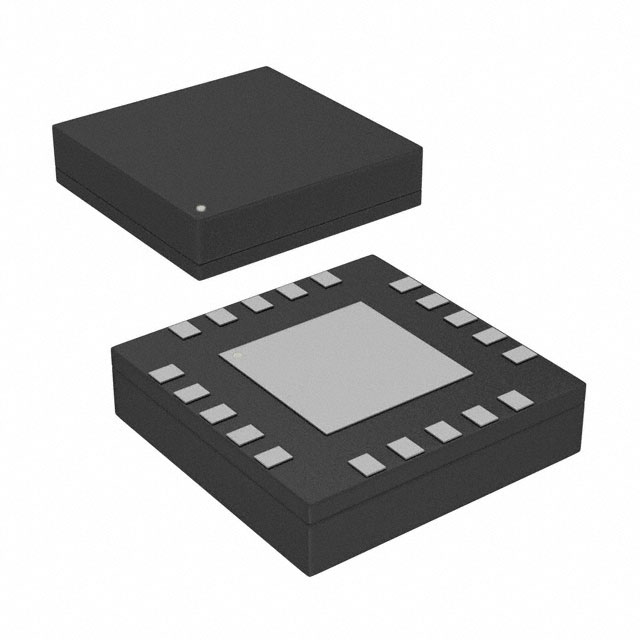

The ADRF5021 is a general-purpose single-pole, double-throw SPDT switch manufactured using a silicon process. It comes in a 3 mm × 3 mm, 20-lead land grid array LGA package and provides high isolation and low insertion loss from 9 kHz to 30 GHz.

This broadband switch requires dual supply voltages, +3.3 V and −2.5 V, and provides CMOS/LVTTL logic-compatible control.

Applications

.

Test instrumentation

.

Microwave radios and very small aperture terminals VSATs

.

Military radios, radars, electronic counter measures ECMs

.

Broadband telecommunications systems

### Features and Benefits

.

Ultrawideband frequency range: 9 kHz to 30 GHz

.

Nonreflective 50 Ω design

.

Low insertion loss: 2.0 dB to 30 GHz

.

High isolation: 60 dB to 30 GHz

.

High input linearity

.

1 dB power compression P1dB: 28 dBm typical

.

Third-order intercept IP3: 52 dBm typical

.

High power handling

.

24 dBm through path

.

24 dBm terminated path

.

ESD sensitivity: Class 1, 1 kV human body model HBM

.

20-terminal, 3 mm × 3 mm land grid array package

.

No low frequency spurious

.

Radio frequency RF settling time to 0.1 dB of final RF output: 6.2 μs
