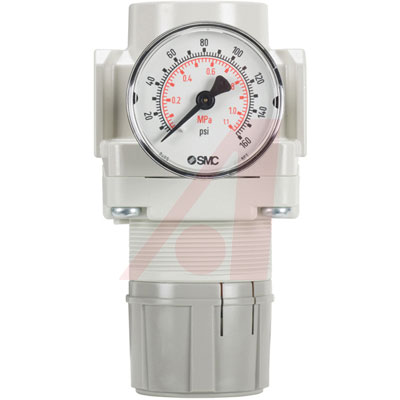

SMC AR40-N04GH-Z-A regulator, AR MASS PRO
* Relieving Type Diaphragm Regulator
* Locking Adjustment Knob Prevents Accidental Setting Changes
* Operating Pressure: 150 psi Adjustment Range: 7 Up to 125 psi
* –1 and –1Z Have 3-29 psi Setting
* Name Plate and Caution Plate for Bowl In Imperial Units psi, °F
Allied Electronics:
Regulator; Sz 40; 1/2 NPT Port; 1 MPa Max/.05-.7 MPa Set Press.; Round Gauge; Pnl Mnt
安装方式 Panel
Body Size 40
Construction Relieving Type
Flow Type Left to Right
Fluid Type Air
Guage Port Size 1/8 in.
Measurement Units psi
Mounting Type With Set Nut for Panel Fitting
Pressure, Operating 145.04 PSI 1 MPa
Proof Pressure 217.6 PSI 1.5 MPa
Series AR40 Series
Set Pressure 0.05 to 0.7 MPa
Size, Port 1/2" NPT
Special Features Round Type Pressure Gauge with Limit Indicator
Temperature, Ambient -5 to 60°C
Thread Type NPT
RoHS标准 RoHS Compliant
