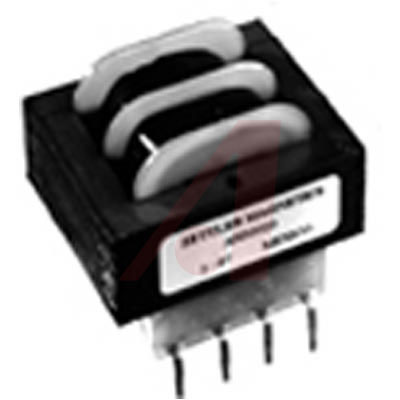

AH30024

Power Transformer 2500Vrms Single Prim. Dual Sec. 115V Prim. 24V/12V Sec. Through Hole

Power PCB Transformer, Horizontal Split Bobbin Design, 2500 V RMS Dielectric Strength

* Horizontal split bobbin design

* Precision molded-in terminals

* UL 506 Approved Class 1 for Use in the US and Canada

* UL Approved Class B 130°C Insulation System

* Pri: Sec 2500 V RMS Hi-POT Dielectric Strength

* Precision Molded-In Terminals

* Horizontal Split Bobbin Design

Allied Electronics:
Transformer, Split Bobbin Pwr; 2.4VA; Sec:0.100A; Pri:115V; Sec:24VCT; PC; 1.125In.W

Online Components:
Power Transformer 2500Vrms Single Prim. Dual Sec. 115V Prim. 24V/12V Sec. Through Hole

Electro Sonic:
Power Transformer 2500Vrms 2.4VA 6Term. PC Pin Thru-Hole
