NP-CAP PXE 系列超低 ESR、阻抗和高耐热性,使用导电聚合物作为电解液。 适用于直流-直流转换器、电压调节器和去耦应用。 无卤素### 固体贴片 105°C电容容差 | 20 % ---|--- 工作温度 | -40 至 +105°C 耗散因子 | 小于或等于 0.06(120Hz,20°C) 冲击电压 | 额定工作电压 x 1.25(15 至 35°C) 预期寿命 @ 105°C | 1000 小时
NP-CAP PXE 系列
超低 ESR、阻抗和高耐热性,使用导电聚合物作为电解液。 适用于直流-直流转换器、电压调节器和去耦应用。 无卤素
得捷:
CAP ALUM POLY 150UF 20% 10V SMD
欧时:

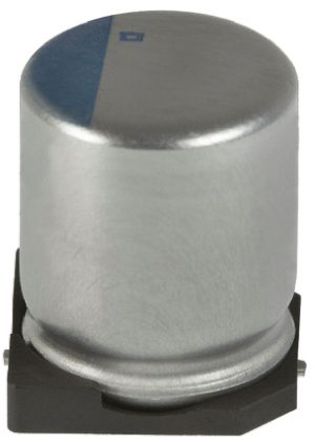

Nippon Chemi-Con 铝聚合物电容器 NP-CAP PXE 系列 10V dc 150μF 表面安装器件 聚合体 APXE100ARA151MF80G
贸泽:
Aluminum Organic Polymer Capacitors 150uF 10 Volt
艾睿:
United Chemi-con&s;s APXE100ARA151MF80G conductive polymer aluminum solid capacitor can easily support changes to the input load into an integrated circuit. It can withstand a voltage of 10 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. Its leakage current is 300@2Min μA. This product is 7.7 mm tall with a diameter of 6.3 mm. It has a tolerance of 20%.
安富利:
NCCAPXE100ARA151MF80G CAPACITOR
Verical:
Cap Aluminum Polymer 150uF 10VDC 20% 6.3 X 7.7mm SMD 0.021 Ohm 2880mA 15000h 105C T/R
Electro Sonic:
Cap Aluminum Polymer 150uF 10VDC 20% 6.3 X 7.7mm SMD 0.021 Ohm 2880mA 15000h 105°C T/R
额定电压DC 10 V
电容 150 µF
等效串联电阻ESR 21 mΩ
容差 ±20 %
纹波电流 2880 mA
纹波电流低频 2.88A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount

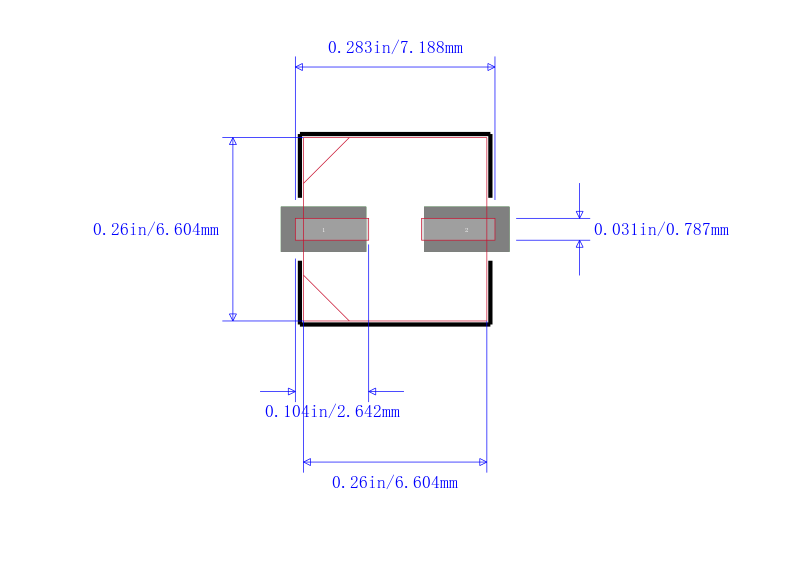

封装 SMD

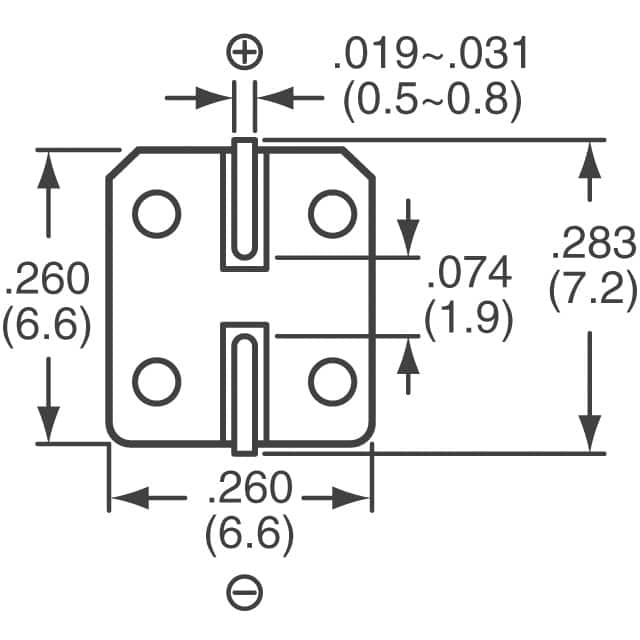

长度 6.6 mm
宽度 6.6 mm
高度 7.7 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命(小时) 2000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
APXE100ARA151MF80G Chemi-Con 贵弥功 | 当前型号 | 当前型号 |
PCF1A151MCL1GS 尼吉康 | 功能相似 | APXE100ARA151MF80G和PCF1A151MCL1GS的区别 |
