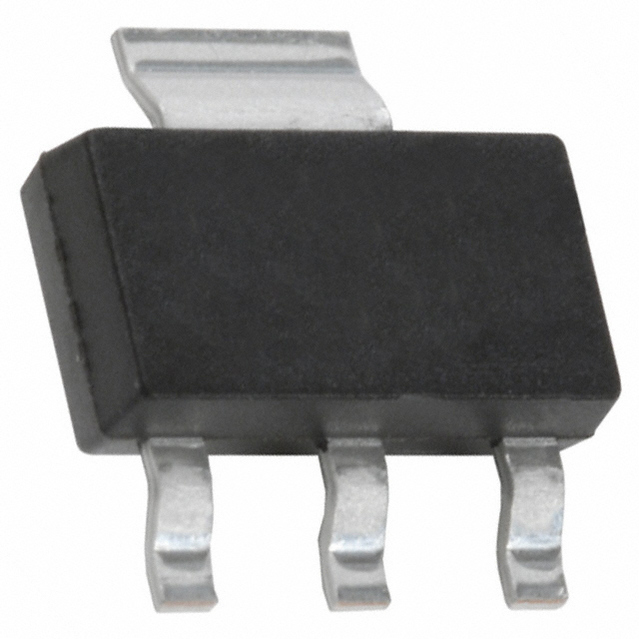

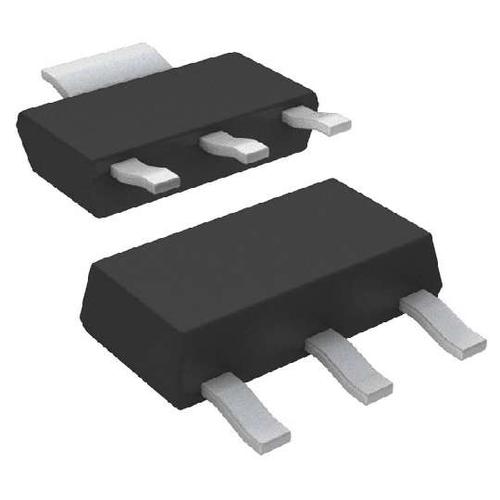

AP1117 系列 1.8 V 1A 低压差 正电压 可调或固定模式 稳压器
AP1117 Series 1.8 V Fixed Output 1A Surface Mount LDO Regulator - SOT-223
得捷:
IC REG LINEAR 1.8V 1A SOT223-3
立创商城:
正 Vin=18V Vout=1.8V~1.8V 1A 60dB@180Hz
e络盟:
固定电压稳压器, LDO, 6.4V至18V, 1.3V压差, 1.8V输出, 1A输出, SOT-223-3
艾睿:
Keep calm and stay stable by implementing this LDO AP1117E18G-13 linear regulator developed by Diodes Zetex. Its typical dropout voltage at current is 1.3@1A V. This voltage regulation device&s;s single output can produce a current up to 1 A. This will operate at a minimum voltage of 6.4 V and a maximum voltage of 18 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. At a load regulation of 18mV and line regulation of 0.2% your circuit is capable of maintaining a constant voltage level at your output. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. The maximum dropout voltage is 1.4@1A V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
Allied Electronics:
Voltage Regulators; LDO; LDO BI 1.0A 1.3V18V 5.0V 1.8V FIX
安富利:
LDO Regulator Pos 1.8V 1A 4-Pin3+Tab SOT-223 T/R
Chip1Stop:
LDO Regulator Pos 1.8V 1A 4-Pin3+Tab SOT-223 T/R
Verical:
LDO Regulator Pos 1.8V 1A 4-Pin3+Tab SOT-223 T/R
Newark:
# DIODES INC. AP1117E18G-13 Fixed LDO Voltage Regulator, 6.4V to 18V, 1.3V Dropout, 1.8Vout, 1Aout, SOT-223-3
儒卓力:
**LDO VREG 1.8V 1A SOT223 **
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 1A SOT-223-3
DeviceMart:
IC REG LDO 1.8V 1A SOT-223
输出接口数 1
输入电压DC 18.0V max
输出电压 1.8 V
输出电流 1 A
针脚数 3
耗散功率 15000 mW
静态电流 10 mA
跌落电压 1.3V @1A
输入电压Max 18 V
输入电压Min 6.4 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min 0 ℃
输入电压 6.4V ~ 18V
安装方式 Surface Mount
引脚数 3
封装 SOT-223-3
封装 SOT-223-3
工作温度 -20℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通信与网络, 计算机和计算机周边, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AP1117E18G-13 Diodes 美台 | 当前型号 | 当前型号 |
ZLDO1117G18TA 美台 | 类似代替 | AP1117E18G-13和ZLDO1117G18TA的区别 |
AP1117E18LA 美台 | 类似代替 | AP1117E18G-13和AP1117E18LA的区别 |
AP1117E18G-U 美台 | 类似代替 | AP1117E18G-13和AP1117E18G-U的区别 |
