稳压二极管 200mW 5.6V

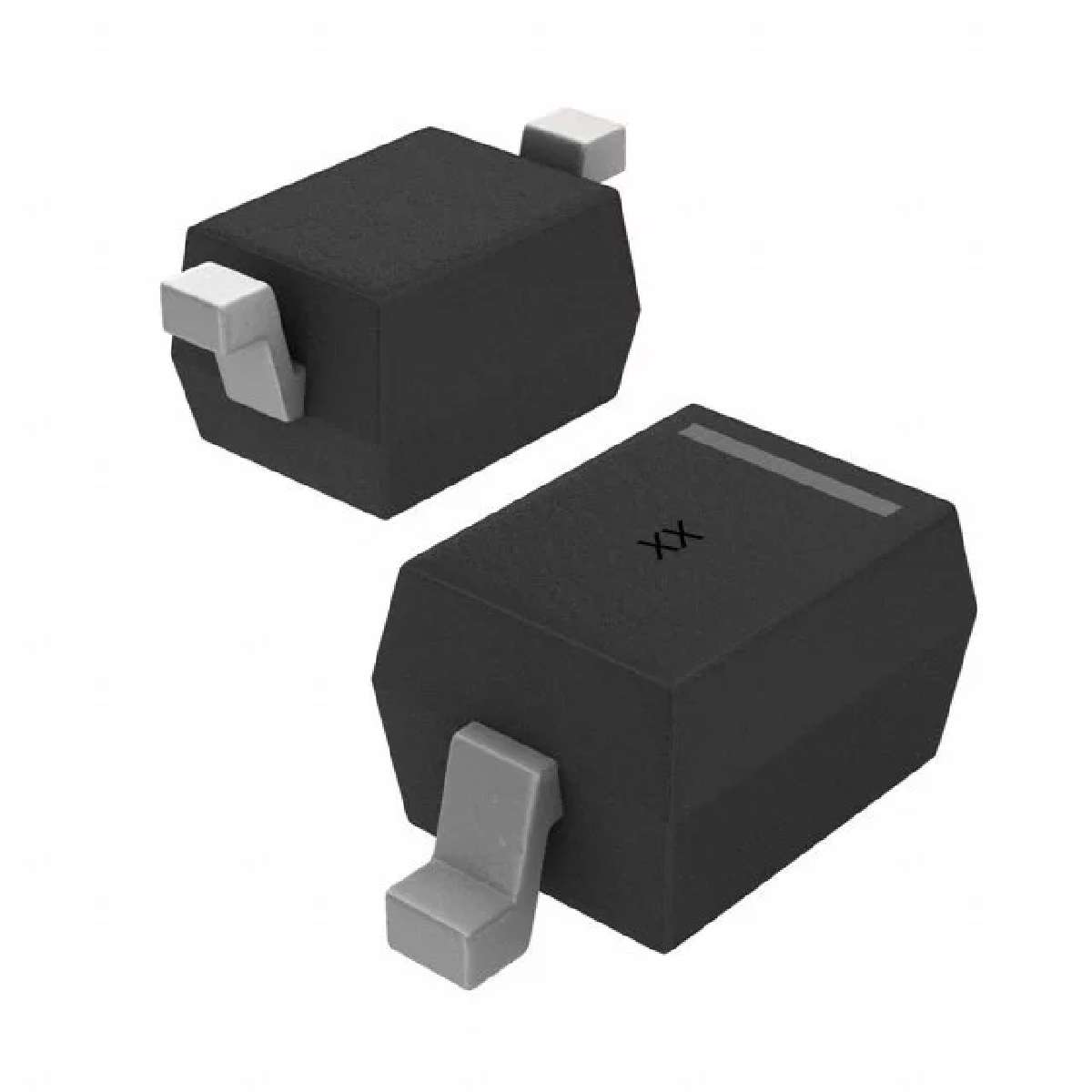

Zener Diode 5.6V 200mW ±7% Surface Mount SOD-323
得捷:
DIODE ZENER 5.6V 200MW SOD323
立创商城:
5.6V 200mW
贸泽:
稳压二极管 200mW 5.6V
艾睿:
This BZT52C5V6S-TP zener diode from Micro Commercial Components will allow you to run it in the reverse direction. Its maximum leakage current is 0.1 μA. Its test current is 5 mA. Its maximum power dissipation is 200 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a single configuration. This zener device has a nominal voltage of 5.6 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -65 °C to 175 °C.
额定电压DC 5.60 V
容差 ±7 %
额定功率 200 mW
正向电压 900mV @10mA
耗散功率 200 mW
测试电流 5 mA
稳压值 5.6 V
正向电压Max 900mV @10mA
额定功率Max 200 mW
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-323-2
长度 1.8 mm
宽度 1.35 mm
高度 1 mm
封装 SOD-323-2
工作温度 -65℃ ~ 150℃
温度系数 0.25 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BZT52C5V6S-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BZT52C5V6S-7-F 美台 | 功能相似 | BZT52C5V6S-TP和BZT52C5V6S-7-F的区别 |
MM3Z5V6T1G 安森美 | 功能相似 | BZT52C5V6S-TP和MM3Z5V6T1G的区别 |
BZX384-C5V6,115 安世 | 功能相似 | BZT52C5V6S-TP和BZX384-C5V6,115的区别 |
