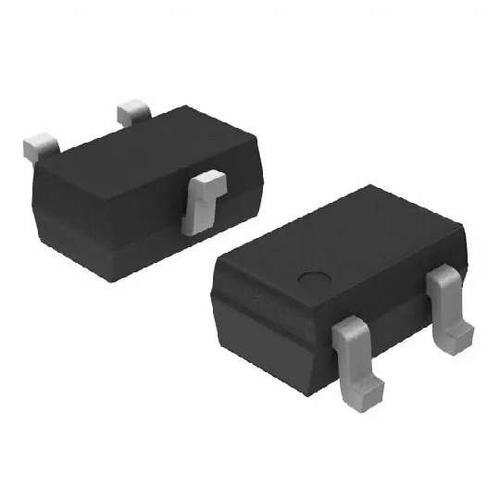

ON SEMICONDUCTOR BC847CWT1G 单晶体管 双极, NPN, 45 V, 100 MHz, 150 mW, 100 mA, 420 hFE
小信号 NPN ,
### 标准
带 S 或 NSV 前缀的制造商部件号具有汽车资格,符合 AEC-Q101 标准。
欧时:
### 小信号 NPN 晶体管,ON Semiconductor### 标准带 S 或 NSV 前缀的制造商部件号具有汽车资格,符合 AEC-Q101 标准。### 双极性晶体管,On SemiconductorON Semiconductor 的各种双极晶体管,包括以下类别:小信号晶体管 功率晶体管 双晶体管 复合晶体管对 高电压晶体管 射频晶体管 双极/FET 晶体管
得捷:
TRANS NPN 45V 0.1A SC70-3
立创商城:
BC847CWT1G
e络盟:
ON SEMICONDUCTOR BC847CWT1G. 双极性晶体管, NPN, 45V, SC-70
艾睿:
Look no further than ON Semiconductor&s;s NPN BC847CWT1G general purpose bipolar junction transistor, which can easily operate in high voltage ranges. This bipolar junction transistor&s;s maximum emitter base voltage is 6 V. Its maximum power dissipation is 150 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C. It has a maximum collector emitter voltage of 45 V and a maximum emitter base voltage of 6 V.
Allied Electronics:
ON Semi BC847CWT1G NPN Bipolar Transistor; 0.1 A; 45 V; 3-Pin SC-70
安富利:
Trans GP BJT NPN 45V 0.1A 3-Pin SC-70 T/R
Chip1Stop:
Trans GP BJT NPN 45V 0.1A 150mW Automotive 3-Pin SC-70 T/R
Verical:
Trans GP BJT NPN 45V 0.1A Automotive 3-Pin SC-70 T/R
Newark:
# ON SEMICONDUCTOR BC847CWT1G Bipolar BJT Single Transistor, General Purpose, NPN, 45 V, 100 MHz, 150 mW, 100 mA, 520 hFE
DeviceMart:
TRANSISTOR NPN 45V 100MA SOT-323
Win Source:
TRANS NPN 45V 0.1A SOT-323
频率 100 MHz
额定电压DC 45.0 V
额定电流 100 mA
额定功率 0.15 W
无卤素状态 Halogen Free
针脚数 3
极性 NPN
耗散功率 150 mW
击穿电压集电极-发射极 45 V
最小电流放大倍数hFE 420 @2mA, 5V
额定功率Max 150 mW
直流电流增益hFE 520
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 3
封装 SC-70-3
长度 2.2 mm
宽度 1.35 mm
高度 0.9 mm
封装 SC-70-3
材质 Silicon
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BC847CWT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
BC847CWT3G 安森美 | 完全替代 | BC847CWT1G和BC847CWT3G的区别 |
BC847CLT1G 安森美 | 类似代替 | BC847CWT1G和BC847CLT1G的区别 |
BC847ALT1G 安森美 | 类似代替 | BC847CWT1G和BC847ALT1G的区别 |
