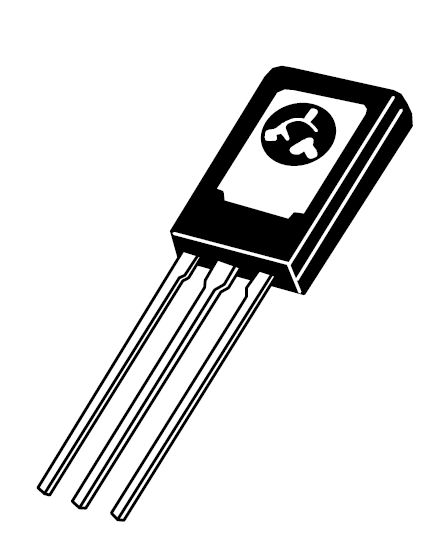

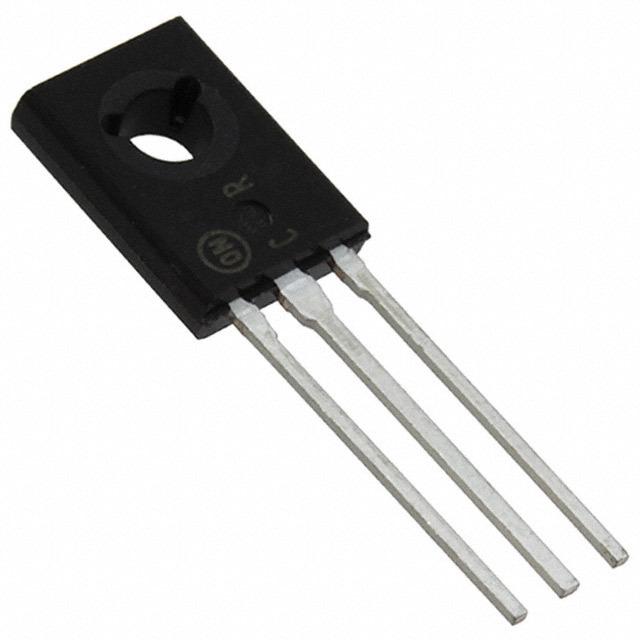

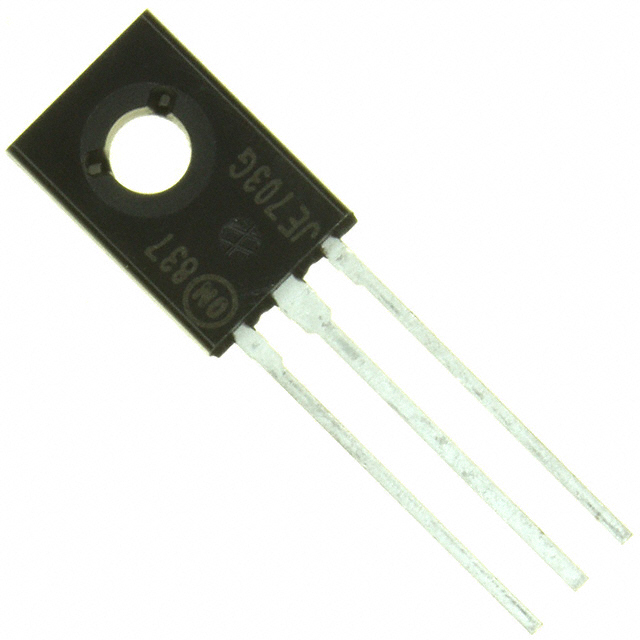

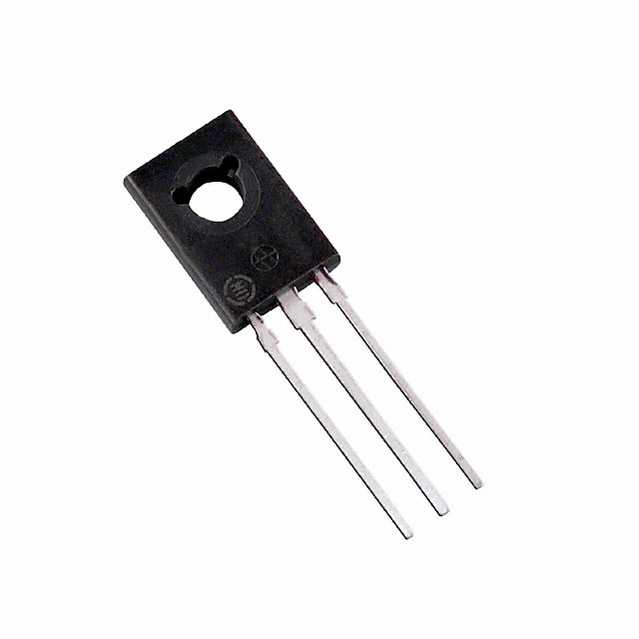

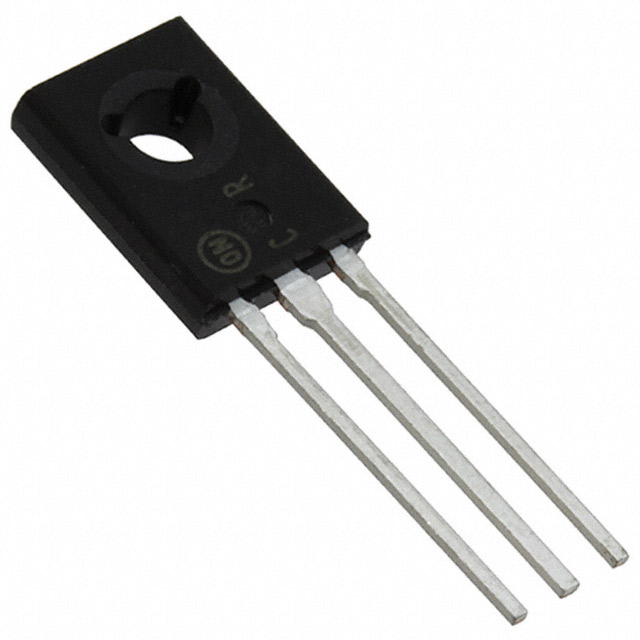

ON SEMICONDUCTOR BD138G Bipolar BJT Single Transistor, PNP, 60 V, 12.5 W, 1.5 A, 25 hFE 新
The versatility of this PNP GP BJT from makes it capable of being use as either a switch or amplifier in your circuit. This bipolar junction transistor"s maximum emitter base voltage is 5 V. Its maximum power dissipation is 1250 mW. It has a maximum collector emitter voltage of 60 V and a maximum emitter base voltage of 5 V. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C.
额定电压DC -60.0 V
额定电流 -1.50 A
针脚数 3
极性 PNP
耗散功率 12.5 W
击穿电压集电极-发射极 60 V
集电极最大允许电流 1.5A
最小电流放大倍数hFE 40 @150mA, 2V
额定功率Max 1.25 W
直流电流增益hFE 25
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1250 mW
安装方式 Through Hole
引脚数 3
封装 TO-126-3
封装 TO-126-3
材质 Silicon
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BD138G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
BD138 安森美 | 完全替代 | BD138G和BD138的区别 |
BD1386STU 飞兆/仙童 | 类似代替 | BD138G和BD1386STU的区别 |
BD1386S 飞兆/仙童 | 类似代替 | BD138G和BD1386S的区别 |
