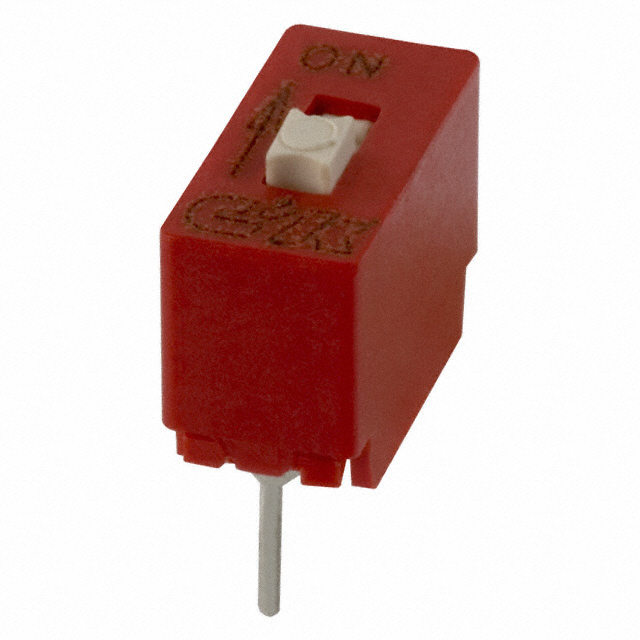

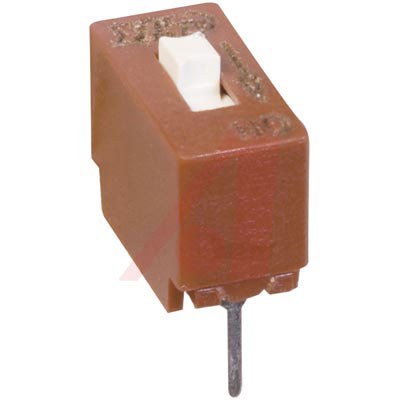

C & K COMPONENTS BD01 DIP / SIP开关, BD系列, SPST, 通孔安装, 1 电路, DIP非密封, 24 VDC
The is a single-pole single-throw SPST 1-position Standard Profile Switch with extended actuator for easy actuation. Open bottom construction allows for solder washing without the need for tape seal. The BD series switch has gold over nickel over phosphor bronze contact, matte-tin over nickel over phosphor bronze terminal and glass filled nylon 6/6 actuator.
- .
- Below 50mR typical initial at 2 to 4VDC 100mA Contact resistance
- .
- 500VRMS at Sea level, between adjacent terminals, minimum dielectric strength
- .
- 5pF Maximum between adjacent terminal capacitance
额定电压DC 25 V
额定电流 100 mA
绝缘电阻 1000 MΩ
电容 5 pF
触点类型 SPST
电路数 1
针脚数 1
接触电阻 50 mΩ
额定电流Max 0.1A @5VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 5 VDC
额定电压DC Max 25 V
接触电阻Max <50 mΩ
安装方式 Through Hole
封装 DIP
长度 4.57 mm
宽度 9.7 mm
高度 7.62 mm
封装 DIP
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 计算机和计算机周边, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BD01 C&K Components | 当前型号 | 当前型号 |
5161390-1 泰科 | 功能相似 | BD01和5161390-1的区别 |
