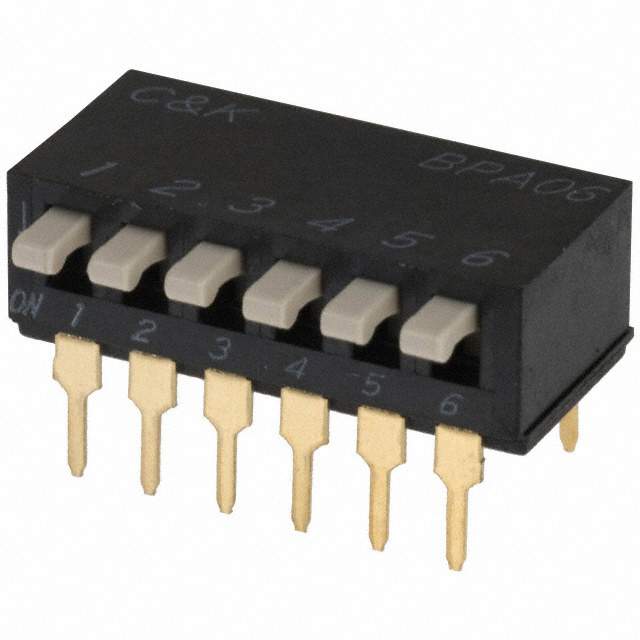

BPA 系列 6 位置 单刀单掷 侧面触动 直 通孔 Dip 开关
Add push button-type user control to your printed circuit board using the dual in-line package switch from C&K Components. It has a SPST configuration. This device has a maximum current rating of 0.1 A @ 5VDC. This DIP switch has a minimum operating temperature of -20 °C and a maximum of 85 °C. The BPA06B DIP switch has a PC pin termination style. This product is 17.2 mm long, 7.3 mm tall and 10.85 mm deep. The maximum DC voltage rating is 24 VDC. This product"s terminal pitch is 2.54 mm.
额定电压DC 24 V
触点类型 SPST
针脚数 6
额定电流Max 0.1A @5VDC
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压 5 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 DIP
长度 17.20 mm
高度 7.3 mm
封装 DIP
触点材质 Beryllium Copper
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BPA06B C&K Components | 当前型号 | 当前型号 |
BPA06K C&K Components | 完全替代 | BPA06B和BPA06K的区别 |
BP06YT C&K Components | 类似代替 | BPA06B和BP06YT的区别 |
BP06YE C&K Components | 功能相似 | BPA06B和BP06YE的区别 |
