EPCOS B59901D0070A040 热敏电阻, PTC, 温度传感器 70?C

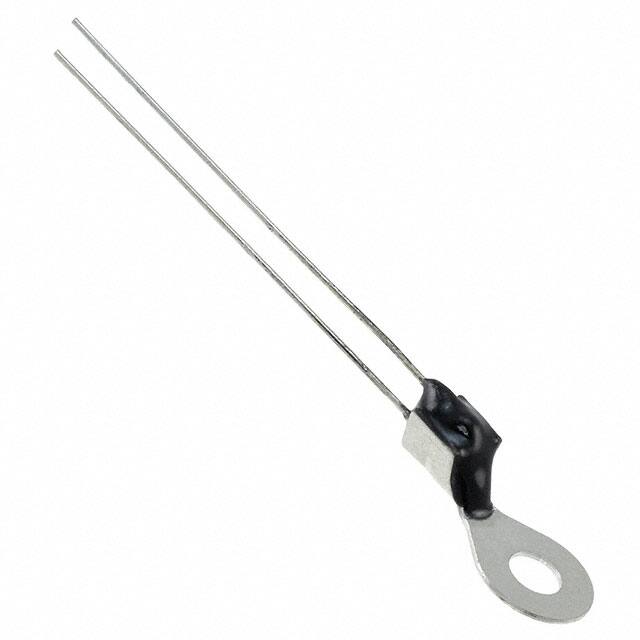

The is a 2-pin PTC Thermistor with epoxy resin coating sensor and tinned leads terminals. This B59901 series through hole mounting thermistor features metal tag that permits good thermal coupling and thus short response time. Characteristics for sensing temperatures Tsense = 90 to 130°C conform with DIN 44081. Soldering can use rosin-type flux or non-activated flux. The soldering due to insufficient preheating may cause ceramic cracks. Suitable for limit temperature sensor.
Avoid contamination of thermistor surface during storage, handling and processing. Do not touch components with bare hands.
Gloves are recommended.
工作电压 30.0V max
电阻 100 Ω
工作温度Max 40 ℃
工作温度Min 0 ℃
工作电压Max 30 VDC
安装方式 Through Hole
引脚数 2
高度 20 mm
脚长度 32.0 mm
工作温度 -40℃ ~ 70℃
产品生命周期 Obsolete
包装方式 Strip
制造应用 Test & Measurement, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
B59901D0070A040 Epcos 爱普科斯 | 当前型号 | 当前型号 |
B59901D0090A040 爱普科斯 | 完全替代 | B59901D0070A040和B59901D0090A040的区别 |
PTFL04BD471Q2N34B0 村田 | 功能相似 | B59901D0070A040和PTFL04BD471Q2N34B0的区别 |
PTFL04BF471Q2N34B0 村田 | 功能相似 | B59901D0070A040和PTFL04BF471Q2N34B0的区别 |
