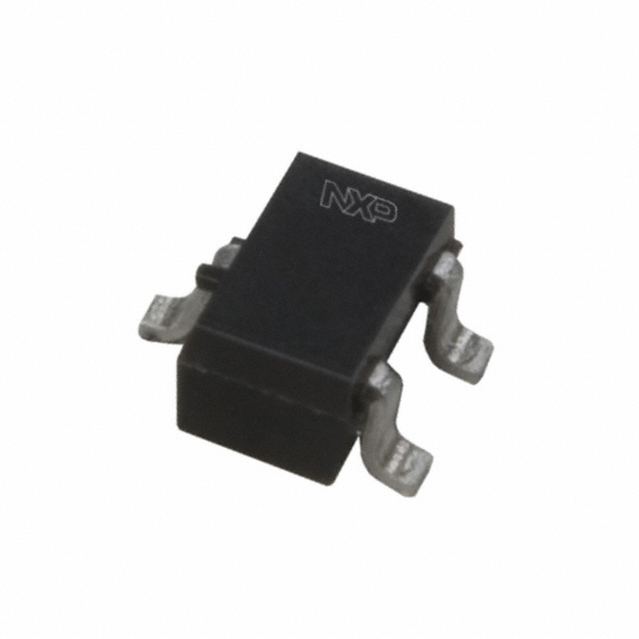

NXP BAS21AW,115 二极管 小信号, 双共阳极, 225 mA, 1.25 V, 50 ns, 9 A
The is a high-voltage Switching Diode encapsulated in a very small surface-mounted device SMD plastic package. It is used for high-speed switching, voltage clamping, reverse polarity protection and general purpose switching.
艾睿:
Diode Switching 250V 0.225A Automotive 3-Pin SC-70 T/R
安富利:
Diode Switching 250V 0.225A 3-Pin SC-70 T/R
富昌:
BAS21W 系列 250 V 9 A 表面贴装 高压 开关二极管 - SOT-323
Chip1Stop:
Diode Switching 250V 0.225A Automotive 3-Pin SC-70 T/R
Verical:
Diode Switching 250V 0.225A Automotive 3-Pin SC-70 T/R
AMEYA360:
DIODE ARRAY GP 250V 225MA SOT323
针脚数 3
正向电压 1.25V @200mA
反向恢复时间 50 ns
正向电流 225 mA
最大正向浪涌电流(Ifsm) 9 A
正向电压Max 1.25 V
工作温度Max 150 ℃
工作结温 150℃ Max
安装方式 Surface Mount
引脚数 3

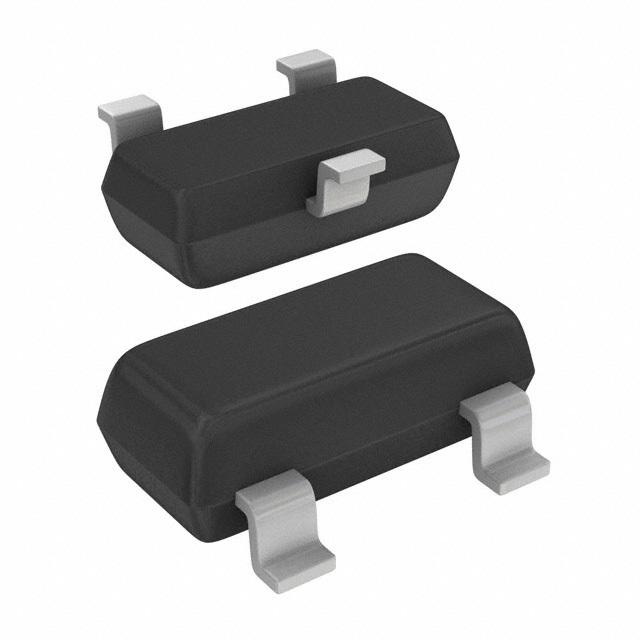

封装 SOT-323-3
封装 SOT-323-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAS21AW,115 NXP 恩智浦 | 当前型号 | 当前型号 |
BAS21AW 恩智浦 | 完全替代 | BAS21AW,115和BAS21AW的区别 |
