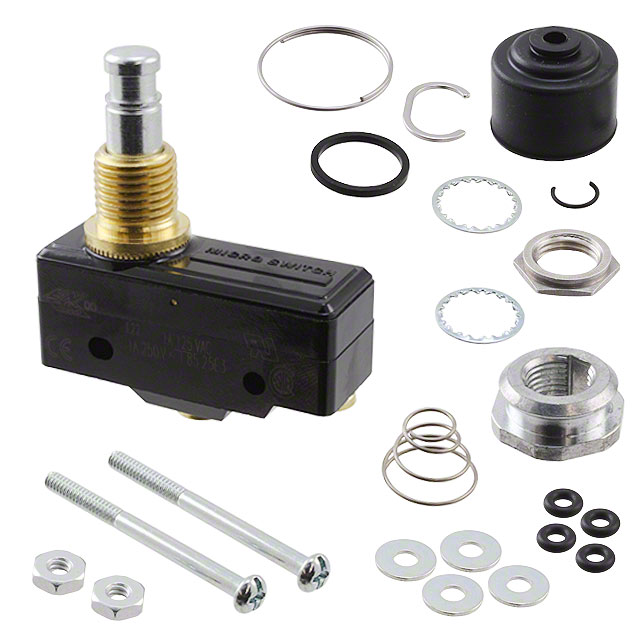

HONEYWELL BZ-2RQ7722 微动开关, 越程柱塞, SPDT, 15A, 250V
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A 250 Vac, Pin Plunger, Removable Side Facing 8-32 NC-2B Thread Screw Termination Blades, No Termination Hardware Furnished, Mounting Holes will Accept Pins or Screws, UL, CE, CSA, ENEC
e络盟:
微动开关, 越程柱塞, SPDT, 15A, 250V
艾睿:
The BZ-2RQ7722 snap-action switch from Honeywell makes opening or closing your circuit a fast operation. This device has a maximum current rating of 1 A @ 250VAC. It has a SPDT configuration. This snap action switch has an operating temperature range of -55 °C to 85 °C. The BZ-2RQ7722 snap action switch has a screw termination style. The maximum AC voltage rating is 250 VAC. This product is 49.28 mm long, 57 mm tall and 17.45 mm deep.
Allied Electronics:
Large Basics
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT High Overtravel Plunger Screw 1A 250VAC 3.61N Panel Mount
Verical:
Switch Snap Action N.O./N.C. SPDT High Overtravel Plunger 1A 250VAC 3.61N Panel Mount Screw Automotive
Newark:
# HONEYWELL BZ-2RQ7722 Microswitch, SPDT, Solder, 15 A, 250 VAC
MASTER:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 1A 125 Vac, ENEC 1 A 250 Vac, Gold Alloy Contacts, 12,7 mm [0.50 in] Threaded Bushing with 8,3 mm [0.326 in] Diameter Hardened Steel Additional Overtravel Plunger, Bin
Online Components:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A ...
Electro Sonic:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 1A 125 Vac, ENEC 1 A 250 ...
