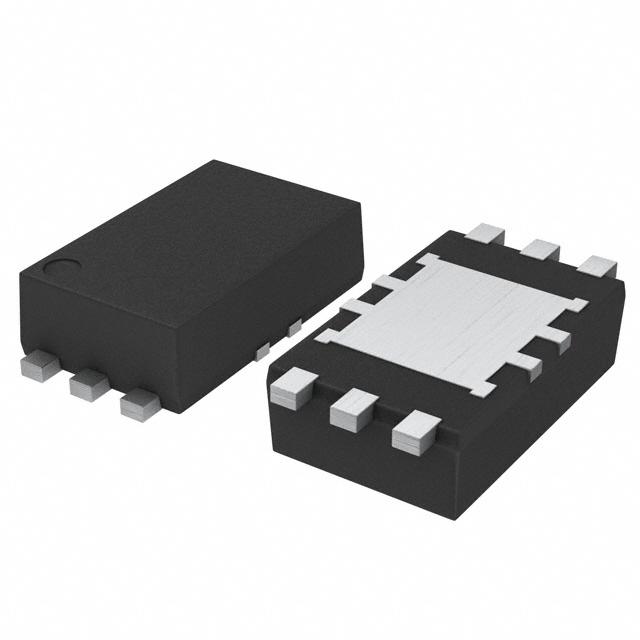

ROHM BD00IC0WHFV-GTR 电压稳压器, LDO, 可调, 2.4V至5.5V输入, 400mV压差, 800mV至4.5V/1A输出, HVSOF-6
The is a variable LDO Regulator with an output current of 1A. The output accuracy is ±1% of the output voltage. The output voltage of the variable output voltage device can be varied from 0.8 to 4.5V using external resistors. This LDO regulator can be used in a wide variety of digital appliances. This device has built-in overcurrent protection to protect the device when output is shorted, 0µA shutdown mode and thermal shutdown circuit to protect the device during over load conditions. This LDO regulator is usable with ceramic capacitors that enable a smaller layout and longer life.
- .
- Shutdown mode
- .
- ±1% Output voltage accuracy
输出接口数 1
输出电压 0.8V ~ 4.5V
输出电流 1 A
针脚数 6
耗散功率 2110 mW
跌落电压 400 mV
输入电压Max 5.5 V
输入电压Min 2.4 V
输出电压Max 4.5 V
输出电压Min 800 mV
输出电流Max 1 A
工作温度Max 85 ℃
工作温度Min -25 ℃
耗散功率Max 2110 mW
精度 ±1 %
输入电压 2.4V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 SMD-6
封装 SMD-6
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 电源管理, Power Management, Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
