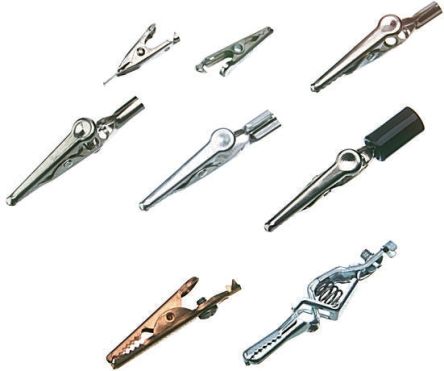

Small charge clip, 5-10 AFig. 1 Upper Left Fig. 2 Upper Centre Fig. 3 Upper Right Fig. 4 Centre Left Fig. 5 Centre Fig. 6 Centre Right Fig. 7 Lower Left Fig. 8 Lower Right A feature of this entire range of quality products is that they have very strong springs, ensuring a good grip and low transfer resistance. Most of the types are supplied in either galvanised steel or uncoated copper. List --- Type no. | Type | Current A | Material | **Note** | **Length mm** | **Fig.** 34 | Micro alligator clip | 5 | Zinc Plated Steel | - | 29 | 1 34-C | Micro alligator clip | 5 | Copper | - | 29 | 1 30 | Mini alligator clip | 5 | Zinc Plated Steel | - | 29 | 2 60 | Alligator clip | 10 | Zinc Plated Steel | - | 51 | 3 60-S | Alligator clip with screw | 10 | Zinc Plated Steel | - | 51 | 4 60-PR-2 | Alligator clip spec. | 10 | Zinc Plated Steel | for test probe | 51 | 5 60-HS | Alligator clip with screw | 10 | Zinc Plated Steel | Insulated red | 59 | 6 60-CHS | Alligator clip with screw | 10 | Copper | Insulated black | 59 | 6 70-CS | Alligator clip with screw | 10 | Copper | Crimp | 43 | 7 85 | Crocodile clip | 10 | Zinc Plated Steel | - | 54 | 8 ### 预接线和螺纹端接

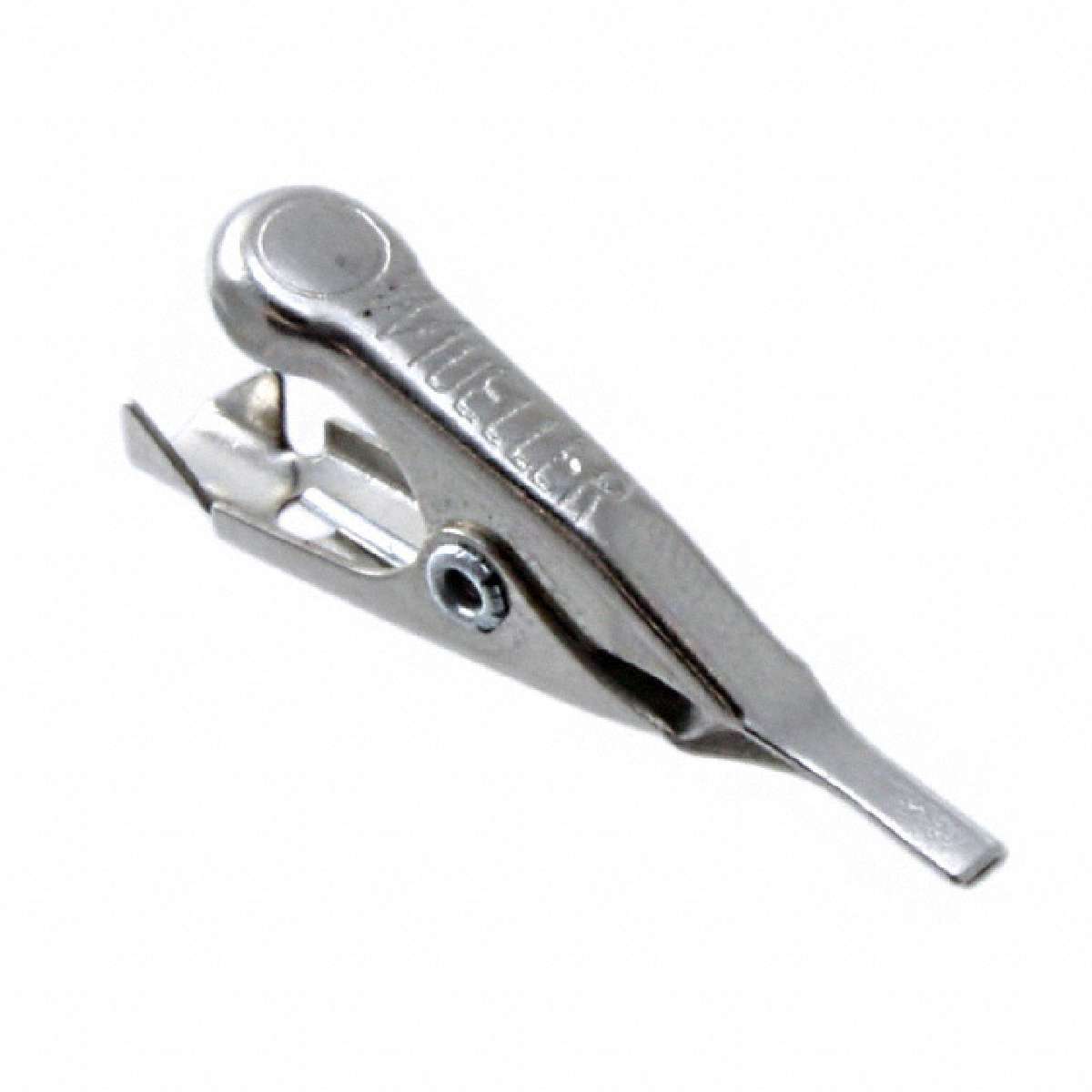

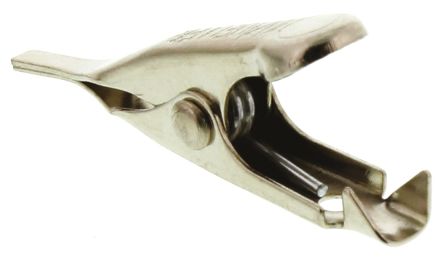

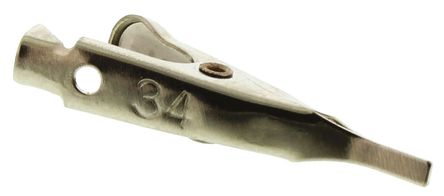

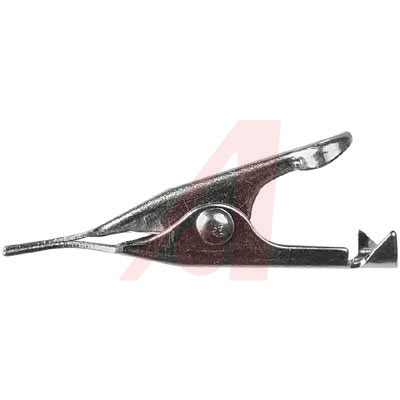

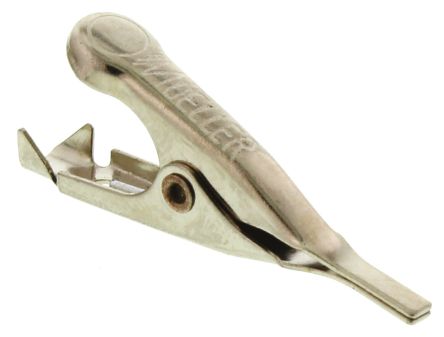

BU Series Alligator Clip, 5 A Current Rating, Steel Material
BU-30 steel, BU-30C solid copper for #20 wire or smaller. BU-30BL barrel tail; solder or crimp connection. BU-30TBO threaded barrel tail; connects to 6-32 threaded male test prod. and BU-34C for #20 wire or smaller; solder connection.
Solder or crimp connection. 7/32 in. 5.6 mm Max. jaw opening.
得捷:
GATOR CLIP STEEL NON-INSUL 5A
欧时:
Mueller 微型,Pee WEE 和微型鳄鱼夹Mueller 微型 Pee WEE 和微型鳄鱼夹,带焊接、螺纹套管和压接端接,适合广泛用途,包括测试引线端接以及测试线束。### Mueller 电子大负荷,通用,鳄鱼夹来自 Mueller 的简易系列钢和铜鳄鱼,适用于接地夹、测试仪表夹、电池接线端子连接和许多其他需要耐用和耐磨鳄鱼夹的应用。
e络盟:
鳄鱼夹, 微型, 钢, 5.6mm, 5A
艾睿:
Conn Alligator Clip SKT 1 POS Crimp/Solder ST Cable Mount 1 Port
Allied Electronics:
Crocodile Clip, Nickel-Plated Steel, Steel Contact, 5A, Natural
Verical:
Conn Alligator Clip SKT 1 POS Crimp/Solder ST Cable Mount 1 Port
Newark:
Alligator Clip, 5.6 mm, 5 A
MASTER:
Micro-Alligator Steel Clip - 5 Amp
Electro Sonic:
Micro-Alligator Steel Clip - 5 Amp
