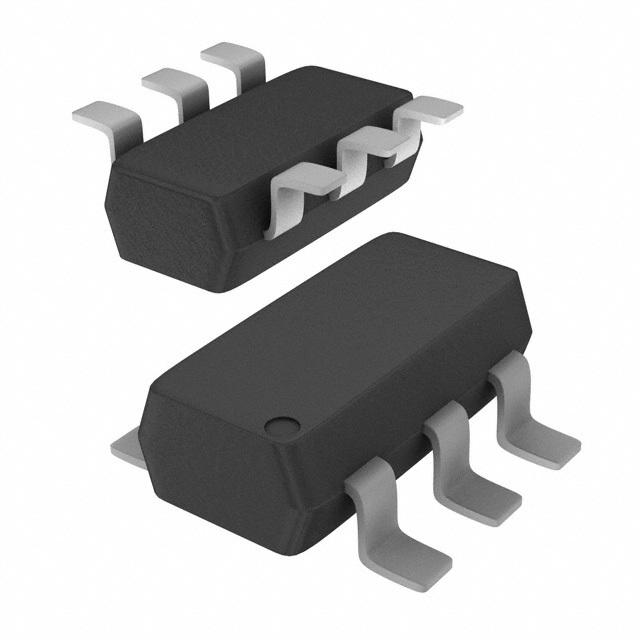

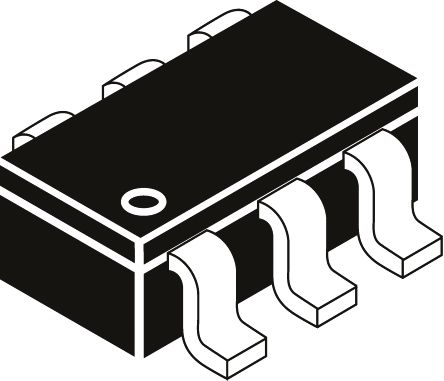

Infineon 二极管 BAV99UE6327HTSA1, Io=200mA, Vrev=85V, 4ns, 6引脚 SC-74封装
小信号开关，
Infineon 高速小信号开关二极管，电流额定值高达 1A，反向电压额定值高达 400V。 多数这些设备提供双路、三路和四路配置。
得捷:
DIODE ARRAY GP 80V 200MA SC74-6
欧时:
Infineon 二极管 BAV99UE6327HTSA1, Io=200mA, Vrev=85V, 4ns, 6引脚 SC-74封装
贸泽:
二极管 - 通用，功率，开关 Silicon Switch Diode FOR HI-SPEED
艾睿:
Converting from AC to DC is simple when using a switching diode BAV99UE6327HTSA1 rectifier from Infineon Technologies. Its maximum power dissipation is 250 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This rectifier has an operating temperature range of -65 °C to 150 °C. It is made in a double dual series configuration. Its peak non-repetitive surge current is 4.5 A, while its maximum continuous forward current is 0.2 A.
Chip1Stop:
Diode Switching 85V 0.2A Automotive 6-Pin SC-74 T/R
TME:

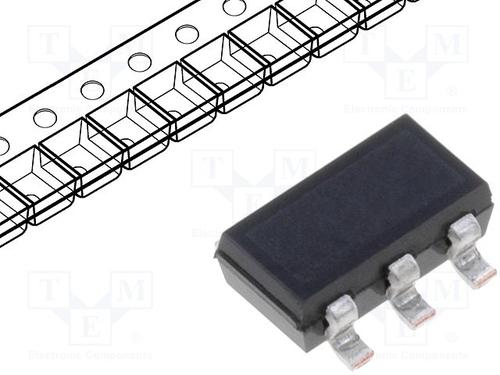

Diode: switching; SMD; 85V; 0.2A; 250mW; Package: reel, tape; SC74
Win Source:
DIODE ARRAY GP 80V 200MA SC74-6
额定电压DC 80.0 V
额定电流 200 mA
额定功率 250 mW
输出电流 ≤200 mA
负载电流 0.2 A
正向电压 1.25V @150mA
耗散功率 250 mW
反向恢复时间 4 ns
最大正向浪涌电流（Ifsm） 4.5 A
正向电压Max 1.25V @150mA
正向电流Max 200 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 150℃ Max
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 6
封装 SC-74-6
长度 2.9 mm
宽度 1.6 mm
高度 1 mm
封装 SC-74-6
材质 Silicon
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
