INFINEON BSR92PL6327HTSA1 晶体管, MOSFET, P沟道, -140 mA, -250 V, 8 ohm, -10 V, -1.5 V
The BSR92P L6327 is a P-channel Power MOSFET consistently meets the highest quality and performance demands in key specifications for power system design such as ON-state resistance and figure of merit characteristics.
- .
- Enhancement-mode
- .
- Avalanche rated
- .
- Small signal packages approved to AEC-Q101
- .
- Logic level
- .
- Qualified according to AEC-Q101
- .
- Halogen-free, Green device
针脚数 3
漏源极电阻 8 Ω
极性 P-Channel
耗散功率 500 mW
阈值电压 1.5 V
漏源极电压Vds 250 V
连续漏极电流Ids 0.14A
上升时间 6.3 ns
输入电容Ciss 109pF @25VVds
下降时间 71 ns
工作温度Max 150 ℃
耗散功率Max 500mW Ta
安装方式 Surface Mount
引脚数 3

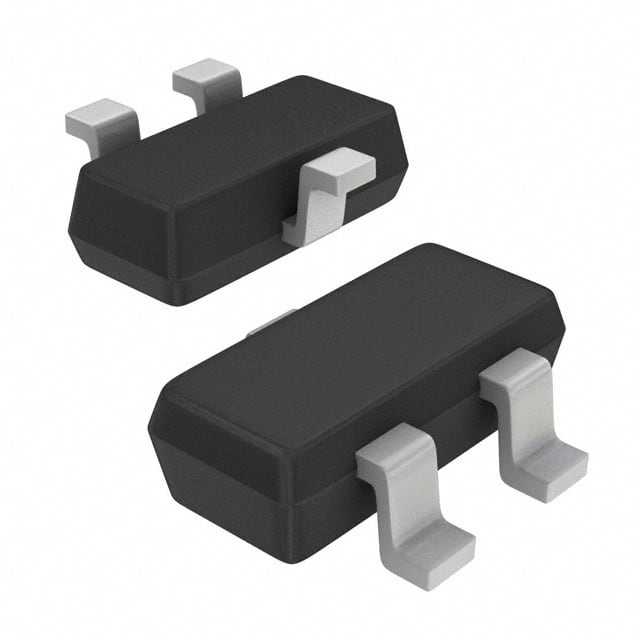

封装 SOT-23-3
封装 SOT-23-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Obsolete
制造应用 Power Management, 计算机和计算机周边, Motor Drive & Control, 电源管理, Automotive, 电机驱动与控制, 车用, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BSR92PL6327HTSA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
BSR92PH6327XTSA1 英飞凌 | 类似代替 | BSR92PL6327HTSA1和BSR92PH6327XTSA1的区别 |
